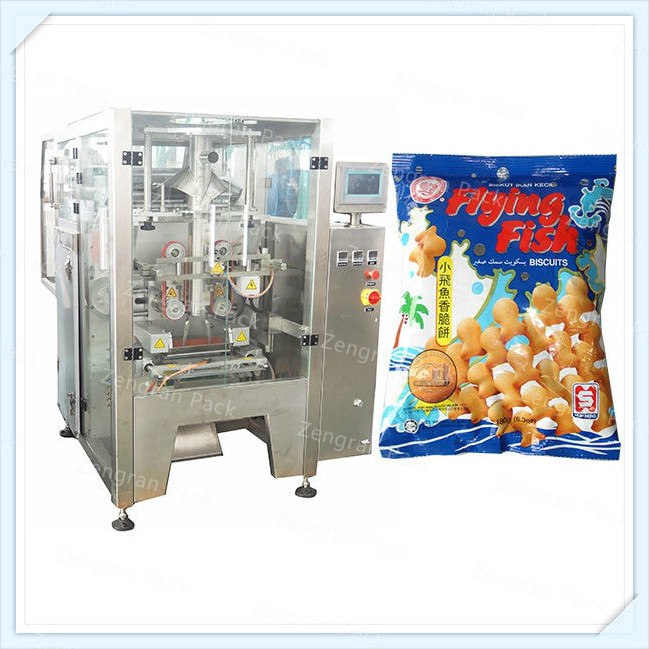

vffs vertical form fill and seal packaging machine

vffs vertical form fill and seal packaging machine,Automatic Filling Packing Machine，Vertical Form And Fill Machine, Zengran Pack

Applications：

Automatic vertical form fill seal packing machine is suitable to pack a wide range of high accuracy and easy fragile product, such as pet food, fish feed,corn flakes, snacks, breakfast cereals, popcorn, rice, jelly, candy, fried pellet, chips, bean, seeds, dry nuts, etc.

Applicable Pouches：

Pillow / back sealing /flat pouch, 3/4 side sealing pouch,stick/triangle pouch,gusseted/quatro pouch.

Working Processes :

Feeding--Conveying--Weighting--Forming ( Filling--Sealing ) --Finish Products Conveying

Features：

1. English and Chinese screen display,it is simple to operate.
2. The function of PLC computer system is more stable, and it's more easy to adjust any parameters.
3. It can stock ten datas, and it's simple to change the parameters.
4. Sever motor drawing film, which is good to accurate location.
5. Independent temperature control system, the precision is accurate to ±1°C.
6. Horizontal, vertical temperature control, suitable for various of complex film, PE film packing material.
7. Packing type diversification, pillow sealing, standing type, punching etc.
8. Bag-making, sealing, packing, printing date in one operation.
9. Quiet work circumstance, low noise

CE - Certificate of Conformity, Certificate of Incorporation (available as an option)

Technical Data：

Model	ZR-260B
Bag Type	Pillow bag, Gusseted bag/Flat bottom bag
Operation Mode	Intermittent
Speed	Up to 100 bags/min
Bag Length	50-340mm
Bag Width	80-260mm
Reel Film Width	420mm
Film Thickness	0.04-0.12mm
Reel Outer Dia	Ф450mm
Reel Inner Dia	Ф75mm
Voltage	AC 220V/ 50HZ，1phase or per customer needs
Power Consumption	3KW
Compressed Air Requirement	0.6MPa，0.36 M3 / Min
Dimension	1600x1217x1680mm（L x W x H）
Weight	800KG

Optional Item:

Optional Features	Options/Description
Sealing Patterns	Checkerboard pattern
	Flat line pattern
	Other customized pattern
Sachet Cut-off Shape	Flat cut-off
	Serration cut-off
	Linking pouch cut-off
Tear Notch	To make tear notch with specific shape
Code Printing	Pressing type coder built-in
	Ribbon code printing
	Code inkjet printing
Hang Hole	To make hang hole with specific shape
Dust Collecting Device	To collect the dust during dosing
Inflating & Deflating	Air / Nitrogen Inflating
Inflating & Deflating	Air deflating
Packaging Film Correction Device	To ensure correct movement of the packaging film
