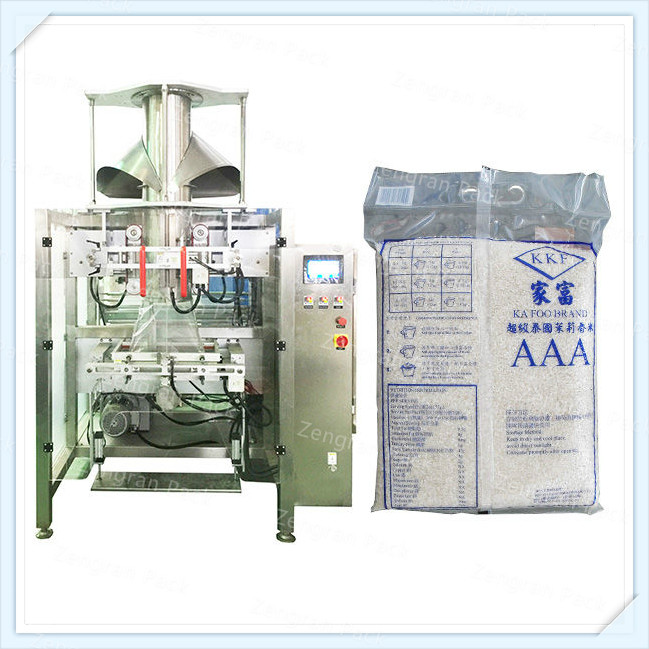

automatic rice pillow gusset bag packing machine,Rice Packaging Machine Price,Sugar Rice Salt Packaging Machine

Applications:

This automatic granule filling packing machine can be equipped with different weight and filling system for various granule, packaging such as peanuts, candies, cookies, potato chips, snacks,candy,pistachio,rice, sugar, beans, lentil,dried fruit, pet food,small hardware ect.
Applicable Pouches: Pillow / back sealing /flat pouch, 3/4 side sealing pouch, stick/triangle pouch, gusseted/quatro pouch.

Features:

1.  English and Chinese screen display,it is simple to operate.

2.  The function of PLC computer system is more stable, and it's more easy to adjust any parameters.

3.  It can stock ten datas, and it's simple to change the parameters.
4.  Sever motor drawing film, which is good to accurate location.
5.  Independent temperature control system, the precision is accurate to 卤1掳C.
6.  Horizontal, vertical temperature control, suitable for various of complex film, PE film packing material.
7.  Packing type diversification, pillow sealing, standing type, punching etc.
8.  Bag-making, sealing, packing, printing date in one operation.
9.  Quiet work circumstance, low noise.

Product Name:

Vertical Fill And Seal Machines , Automatic Bag Filling And Sealing Machine , Chips Pouch Packing Machine , Vertical Form Fill Seal Machine Manufacturers , Nitrogen Bagging System , Vffs Machine Manufacturers , Automatic Atta Packing Machine Manufacturers , Form Fill And Seal Plastic,Automatic Packing And Sealing Machine , Laminated Packaging Machine , Ultima Vertical Form Fill Seal Machine , Weight Packaging Machine , Gusset Bag Packaging Machine, Packaging Machine Distributor , 500 Gram Packing Machine, , Plastic Pouch Packing Machine Paper Filling MachineGranule Packing Machine FactoryRice Packaging Machine Price,Rice Packaging Machine Price 1kg 2kg 5kg 10kg Sugar/Rice/Salt Packing Machine Sugar Rice Salt Packaging Machine.


Technical Specifications:

TypeZR-320
Packing materialOPP/CPP,OPP/CE,PET/PE (etc complex film) PE
Bag-making size200mm(L); 50-150mm(W)
Packing speed5-60(bags/min)
Max width of film roll320mm
Measuring range800ml
Air consumption0.65mpa
Gas consumption:0.7m3/min
Voltage220V/50Hz
Power3 KW
Product size1105*826*1380mm
Product weight300Kg


Optional Item:

Optional FeaturesOptions/Description
Sealing PatternsCheckerboard pattern
Flat line pattern
Other customized pattern
Sachet Cut-off ShapeFlat cut-off
Serration cut-off
Linking pouch cut-off
Tear NotchTo make tear notch with specific shape
Code PrintingPressing type coder built-in
Ribbon code printing
Code inkjet printing
Hang HoleTo make hang hole with specific shape
Dust Collecting DeviceTo collect the dust during dosing
Inflating & DeflatingAir / Nitrogen Inflating
Air deflating
Packaging Film Correction DeviceTo ensure correct movement of the packaging film
