Application

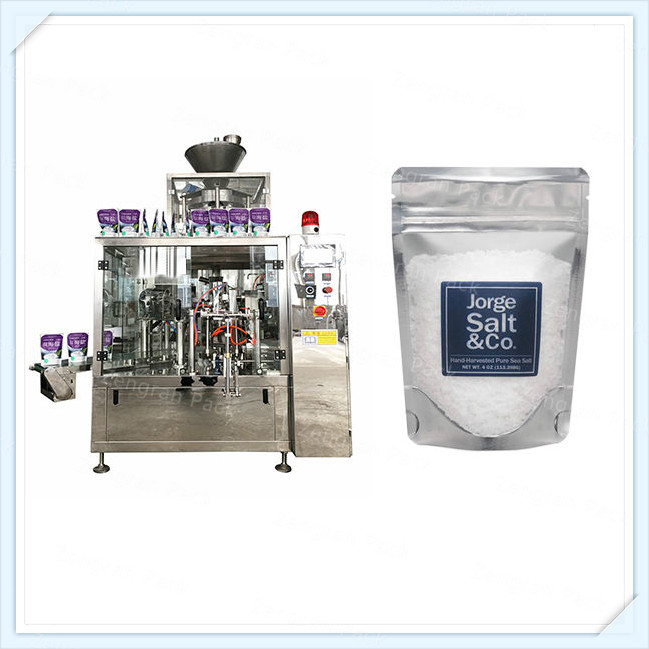

Rotary bag-given packing machine with different dosing (such as multihead weigher,auger filler,liquid filler etc.) can be suitable for the automatic packing for granular,powder,liquid,paste etc.Different kinds of product with the premade stand-up zipper pouch and so on.
Function And Characteristics
Easy To Operate:PLC control, man-machine interface is friendly.
Variable frequency speed regulation:Used frequency conversion adjustment device, the speed can be adjusted within the range according to the needs of reality in production.
Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.
The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
Use no oil vacuum pimp,avoid polluting the enviroment in the production.
Easy to clean:the machine table can be washed.
Safety Device
No pouch or open error,on filling
No pouch or no filling,no sealing.
No coding ribbon,Emergency stop and alarm.
The safety door open,alarm(option)
The air pressure not enough,alarm.
The sealing temperature anomaly,alarm
Product Name:
Anhui Zengran Packaging Technology Co., Ltd锛Rotary Packing Machine , Filling Machine For Nuts , Flour Paper Bag Packing Machine , Rotary Pouch Filling Machine , Doypack Sealing Machine , Doypack Filling And Sealing Machine , Stand Up Bag Filling Machine , Automatic Stand Up Pouch Packing Machine , Premade Pouch Filling Sealing Machine , Stand Up Pouch Filling Equipment , Stand Up Pouch Filling Machine , Zipper Pouch Machine , Doypack Pouch Filling Machine , Zipper Pouch Sealing Machine , Rotary Bagger.
Product Description
| Model NO.: | ZRG8-200 |
| Pouch type | stand-up pouches, zipper bags,four/three side sealed bags |
| Pouch Size | Width(mm): 80-210, Length(mm):100-300 |
| Filling Volume | 10-1500g(Depend on type of products) |
| Capacity(PPM) | 30-50 bags/ min |
| Package Accuracy | Error鈮ぢ1G |
| Total power | 2.5KW(220V/380V,3PH,50HZ) |
| Demension | 1460*1560*1480mm(L*W*H) |
| Weight | 1700KGS |
| Compress air requirement | 鈮0.8m鲁/min supply by user |
| Features and Characteristics | 1. incessant rotary vacuum system |
| 2. quick changeover | |
| 3. comply with the sanitation requirements of food processing machines | |
| 4. materials contact parts adopt 304 stainless steels | |
| 5. easy to operate | |
| 6. sealing temperature detection | |
| 7. the machine adopts PLC and POD(touch screen)electrical control system | |
| 8. friendly man-machine interface | |
| 9. high-quality sealing bag mouth | |
| Application: | Block: chocolate, candies, cereal, biscuits, cakes, puffed food, etc. |
| Granule: nuts, capsules, seeds, feeds, pesticides, fertilizers, etc. | |
| Powder: seasoning, milk powder, washing powder, fine sugar,etc. | |
| Liquid/sauce: detergent, juice, beverage, ketchup, jam | |
| Pickles: carrots, etc. | |
| necessary infos offered in inquiry | pouch type |
| pouch size | |
| filling material |
