Applications

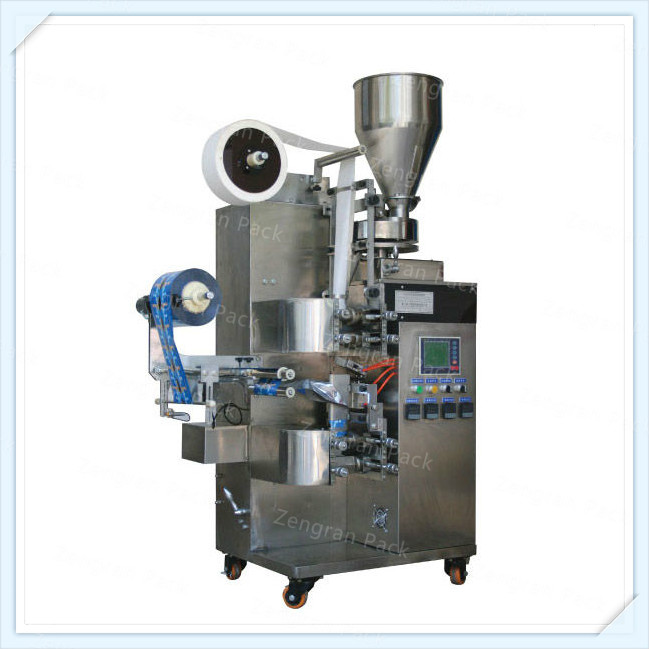

ZR-16 Tea-Bag Packing Machine is a kind of new multi-function machine with totally automatic filling for both inner and outer bags at one time, it is suitable for automatically packaging of steeping products, such as fragmental tear medical tee coffee etc. Outer envelope is made from heatable lamination packing material that the function for fresh protection, damp proof, and also avoiding volatile smelling, thus make the material an ideal choice for packaging of Chinese medical pills, healthcare tea and packed tea as well.
Features
1. An outer seal paper by stepper motor control, bag length stable, accurate positioning;
2, using the PID controller to adjust the temperature, temperature control more accurate;
3, the operation of the machine is controlled by PLC, HMI display, easy to operate;
4, all accessible part of SUS304 stainless steel material, a reliable guarantee health products;
5, part of the work cylinder using imported parts, ensure the accuracy and stability of its work.
6, the machine can complete additional device flat cut, date printing, easy to tear, and other functions.
Technical Data
| Type | ZR-16 |
| Bag size(Inner bag) | (L)50-100mm/(W)30-80mm |
| Bag size(Outer bag) | (L)60-150mm/(W)40-105mm |
| Capacity | 25-50 bags/min |
| Power | 220V 50HZ 2.05KW |
| Weight | 550KG |
| Filling range | 2-12 ml |
| Dimension锛圠*W*H锛 | 1150*500*1850 mm3 |
