1, Applications:

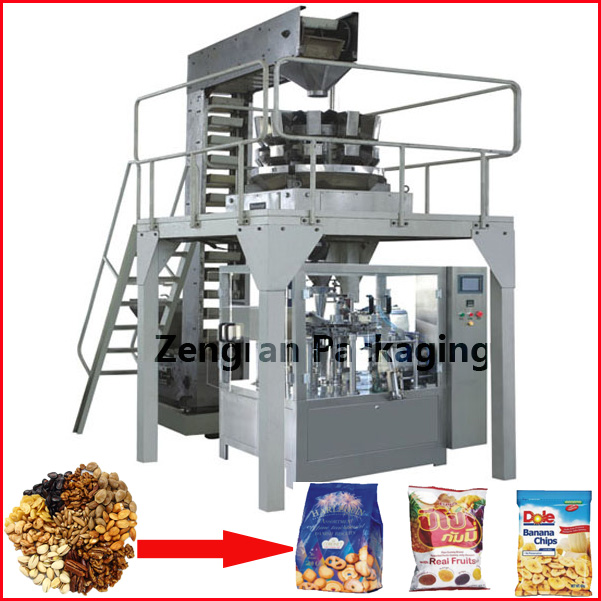

The Granules packing machine is suitable for granule material, such as Melon seeds, Nuts, Candy, Raisins, Chinese wolfberry, red dates, Potato chips, cookies and other solid material automatic packing.
2, Description:
(1). Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
(2). Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
(3). Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
(4). The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
(5). The part where touch to the materials is made of stainlesss steel and according with the request of GMP.
Product Name:
Rotary Packing Machine , Filling Machine For Nuts , Flour Paper Bag Packing Machine , Rotary Pouch Filling Machine , Doypack Sealing Machine , Doypack Filling And Sealing Machine , Stand Up Bag Filling Machine , Automatic Stand Up Pouch Packing Machine , Premade Pouch Filling Sealing Machine , Stand Up Pouch Filling Equipment , Stand Up Pouch Filling Machine , Zipper Pouch Machine , Doypack Pouch Filling Machine , Zipper Pouch Sealing Machine , Rotary Bagger锛Anhui Zengran Packaging Technology Co., Ltd.
3, Technical parameters:
| Working position | Eight-working position |
| Bag material | Laminated film/PE/PP |
| Bag pattern | Stand-up with zipper & stand-up, spout, flat bag, |
| Max filling weight | 10-5000g |
| Filling accuracy | 0.5-1.5% |
| Bag size | W:100-200mm L:100-350mm (could be customized) |
| Speed | 10-40bags/min |
| Voltage | 380v 3phase 50/60hz |
| Total power | 5.5KW |
| Compress air | 0.6m鲁/min |
