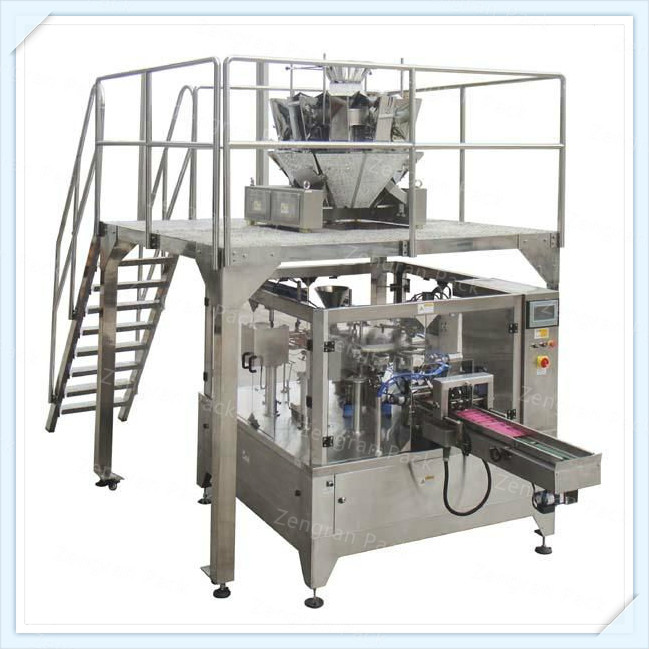

automatic zipper bag rotary fill seal packing machine for seeds nuts锛孼ipper bag turntable filling and sealing packaging machine

Applications


All kinds of grains and solids, like candy, nuts, raisins, peanuts, melon seeds, nuts, potato chips, chocolate, biscuits and so on.

Performance and features


1.wide applications: various state and nature of solid (granule);

2.A wide range of pouches: all kinds of pre-made pouches;

3.Easy to operate: PLC controller, HMI system makes easy operation;

4.Easy to adjust: change different pouches within 10 minutes;

5.High automation: unmanned in weighing and packing process, machine alarm automatically when failure;

6.Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;

7.The product contact parts are adopted SUS304 to ensure sanitation and safety, meet the GMP standard;

8.Imported engineer plastic bearings, no need to oil, no contamination;

9.Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;

10.Pre-made bag packing:perfect sealing quality, upgrade the finished product.

Product Name:

Rotary Packing Machine , Filling Machine For Nuts , Flour Paper Bag Packing Machine , Rotary Pouch Filling Machine , Doypack Sealing Machine , Doypack Filling And Sealing Machine , Stand Up Bag Filling Machine , Automatic Stand Up Pouch Packing Machine , Premade Pouch Filling Sealing Machine , Stand Up Pouch Filling Equipment , Stand Up Pouch Filling Machine , Zipper Pouch Machine , Doypack Pouch Filling Machine , Zipper Pouch Sealing Machine , Rotary Bagger


Technical parameters


Equipment modelZR6-200, ZR8-200
Equipment material304 stainless steel
Pneumatic componentSMC,AirTAC
Vacuum componentVacuum generator (SMC)
Drive modeFrequency conversion motor drive
Measuring typeMulti-head computer weigher
Operation interfaceTouch screen(double language:Chinese and English)
Bag materialsHeat sealable film as PA/PE,PET/PE,AL film etc.
Bag sizeW:70~200mm  L:100~300mm (date coding requires鈮140mm length)
Filling range5~1500g
Packing speed20~55bags/min (depended on the product and filling weight)
Package accuracyError鈮ぢ1%
WeightZG6-200:800kg
DimensionZG6-200:1475*1325*1480(L,W,H)
Total powerZG6-200:1.5kw
Driving power source380V Three-phase Five-line 50HZ
Control power sourceDC24V
Compress air requirement鈮0.45m鲁/min (compress air is provided by user)
