Application
Suitable for garin material, such as Melon seed, nuts, candy, Raisins, Chinese wolfberry, Red dates, Potato chips, cookies, crystal monosodium glutamate and others solid material automatic packing.

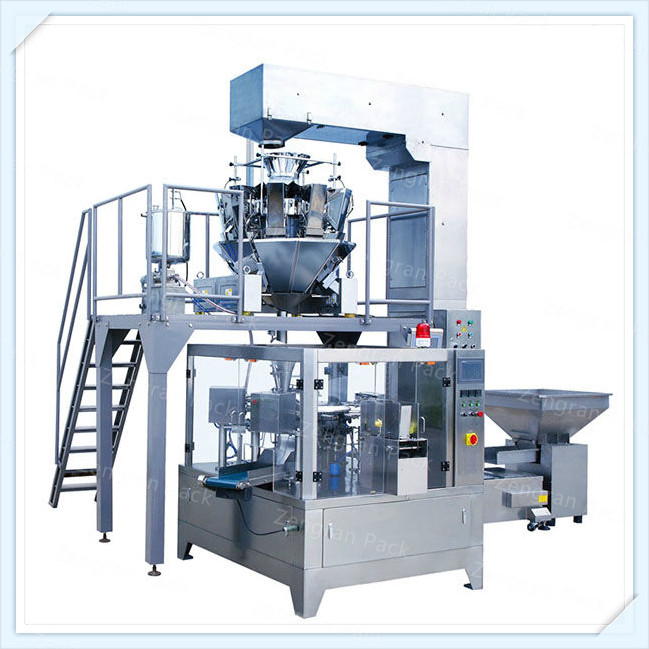

Rotary given-bag packing machine with different dosing(such as multihead weigher, auger filler, liquid filler etc.) can be suitable for the automatic packing for granular, power, liquid, paste etc. Different kings of product with the premade stand-up zipper and so on.
Function and Characteristics
1.Easy to operate, PLC control, the man-machine interface is friendly.
2.Easy to adjust the pouch width, control by motor, only by a button you can sync control each sets of clip.
3.No pouch or open error, no filling.
4.No pouch or no filling, no sealing
5.The safety door open, alarm(option)
6.No coding ribbon, Emergency stop and alarm.
7.The sealing temperature anomaly,alarm.
8.The air pressure not enough, alarm.
9.The material touching with products is all made of stainless steel 304 or food-degree plastic, according with hygienic requirement.
Product Name:
Rotary Packing Machine , Filling Machine For Nuts , Flour Paper Bag Packing Machine , Rotary Pouch Filling Machine , Doypack Sealing Machine , Doypack Filling And Sealing Machine , Stand Up Bag Filling Machine , Automatic Stand Up Pouch Packing Machine , Premade Pouch Filling Sealing Machine , Stand Up Pouch Filling Equipment , Stand Up Pouch Filling Machine , Zipper Pouch Machine , Doypack Pouch Filling Machine , Zipper Pouch Sealing Machine , Rotary Bagger锛Anhui Zengran Packaging Technology Co., Ltd.
Technical Parameters
Model | ZR8-200 | ZR8-300 |
Working Stations Number | Eight | |
Pre-made Pouch Types | Heat sealable premade side seal bags, like gusseted bag, flat bottom bags, zipper bags, stand-up bags, spout bags, etc. | |
Pre-made Pouch Size | Width: 80 to 220mm (3.15鈥 to 8.66鈥) | Width: 180 to 300mm (7.09鈥 to 11.81鈥) |
Length: 100 to 300mm (3.94鈥 to 11.81鈥) | Length: 100 to 350mm (3.94鈥 to 13.79鈥) | |
Capacity | 35 to 40bpm (depending on product and pouches) | |
Filling Range | 10 to 2500g (depending on the product) | |
Power Consumption | 2.5kw | 2.1kw |
Air Consumption | 0.6 m鲁/min (supplied by the user) | |
Outer Dimension | 1460*2500*1400mm | 2460*1835*1640mm |
