Description

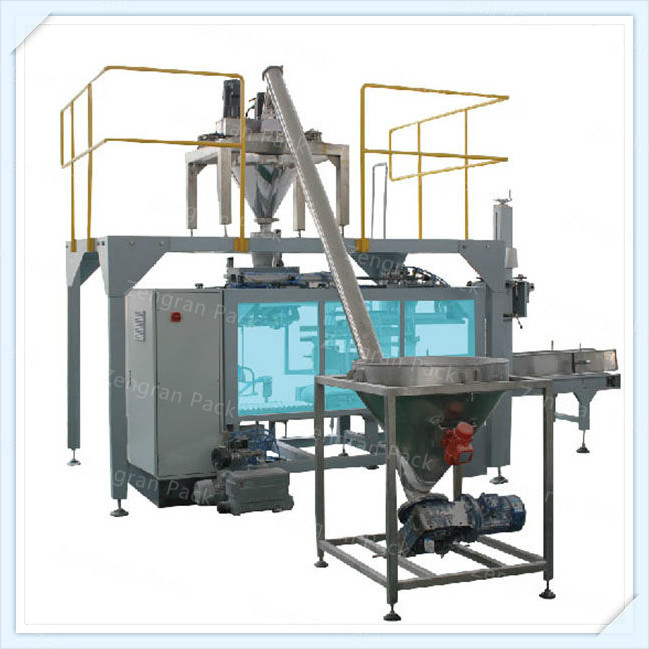

Automatic powder bag feeding packaging machine unit is specially suitable for powdery material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-25kg, the maximum speed can reach 2-6bags/min. High efficiency, advanced design suitable for various requirements.

Features

10-25kg packaging, with a capacity of 1000 bags/h(according to different bag, raw material)

2. It’s suitable for paper bag, PE bag, woven bag. Paper bag & woven bag can adopts sewing sealing (DS-8C). PE bag adopts hot sealing (HS-22D).(Final decision according to customer's requirements.)

3. Empty bag putting process detected by detector’s dual-confirmation. Filling process stopping automatically when leakage appears or no bag putting on.

4. Automatic bag feeder consists of horizontal 3 units, each unit can store 100 bags(PE bag), suitable for high speed production.

5. Full automatic running.

6. Additional middle damper in auger hopper (optional), air chute (optional), to prevent product splash, promote the dedusting result.

7. Vibration gas exhaustion device for non pinhole bag is optional, to eliminate the rest air in the product.

Safety & Control Device

1. Bag shortage detector—such as 2 units without bag, then indicator light & buzzer warning--it's time to supply bags. When 3 units none bag—machine stop automatically.

2. Fault: bag mouth opening detector—bag has been chucked auger head incorrectly, offload the bag, stop the dosing machine by signal. After this problem has been solved, restart the filling process.

3. Stitching broken detector—when sewing machine stitching broken, indicator light on, buzzer sounds, whole machine stopped automatically.

4. String shortage detector—indicator lights on while sewing string shortage. Buzzer sounds—it's time to supply sewing string.

5. Bag hot seal machine without automatic temperature controller or heating stripe broken detector.

Technical parameters

Product Name:

Screw Bagging Machine , Gravimetric Filling , Gravimetric Filling Machine , Auto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Big Bag Handling Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , Flour Bag Packing Machine , Fully Automatic Milk Packing Machine , Chemical Powder Filling Machine , Automatic Flour Packing Machine For Paper Bag

FAQ

Q: First time cooperation, how can i believe your factory will ship the machine to me?
A: We are more thank 20 years experience in packaging industry,and if you worry about that, we can do business by trade assurance.
or L/C, etc.

Q: How can i make sure that i get the right good quality machine?
A: Before packing it, we will make the machine test, and make the testing report. and as your request, we can buy the assurance for you to protect your prohibit.

Q: What after sales service you can provide?
A: As request, we can send our professional engineers to your factory to set up the machine and training your workers , only need you to bear relate charges. and any question you meet when using, you can contact me at any time by Skype or cellphone or email, we will respond you within 12 hours.

Q: How to get the detailed information and price and drawing?
A: Send us inquiry below and press "send " with the detailed packing request information as below:
1) product name 2) packing weight 3) product bulk density 4) product material and bag picture 5) packing speed and packing accurate request.
