A: Machine Features

1, The weighing syetem of CJD1000K quantification Ton packaging machinery contains high accuracy (0.02%) sensor and high resolution controller, to keep the machine with high accuracy and stable performance.

2, The material feeding parts adopt two kinds big one and small one) valves to control the three kinds feeding: fast, slow and exactness.

3, The packing range is 500-1200 kg adjustable. It suitable to big bags packing.

4, The parameter setting and the weighing calibration is very simple and with convenient operation.

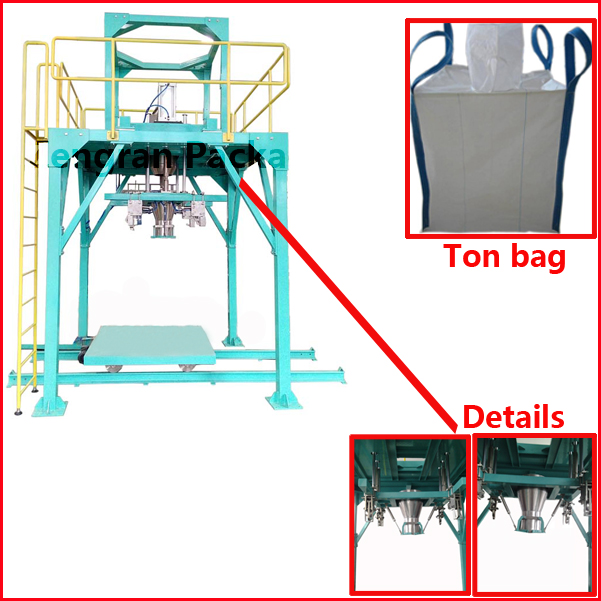

B: Construction

1, Feeding part: Adopt two kinds(big one and small one) valves to control the three kinds feeding: fast,  slow and exactness.

2, weighing shelf: The weighing shelf connected with sensor, and convey the Weight signal to the electric box which controlling the operation of the machinery.

3, The electromotion car operated by the motor and run in the track to convey the products. The cars' position controlled by worker and the final position is determined by the limit switch.

4, Electric box: Exterior signal and the sensor signal are conveyed to the electric box, which could control the feeding ON and OFF, cylinder lifting and the car running through inished program.

C: Main function and parameter

Model: CJD1000K

Applicable Packing: Ton bags.

Material range: 500-1200kg

Packing speed: feeding ON to OFF, 4-6 tons/H

Accuracy: static accuracy 0.1%FA.OIML grade, dynamic accuracy 0.3%

Air supply: 0.4-0.6 Mpa, 2 M3/H

Power supply: AC380V

Power: 2.5Kw

External dimension(LxWxH): 5200x1800x3500mm
