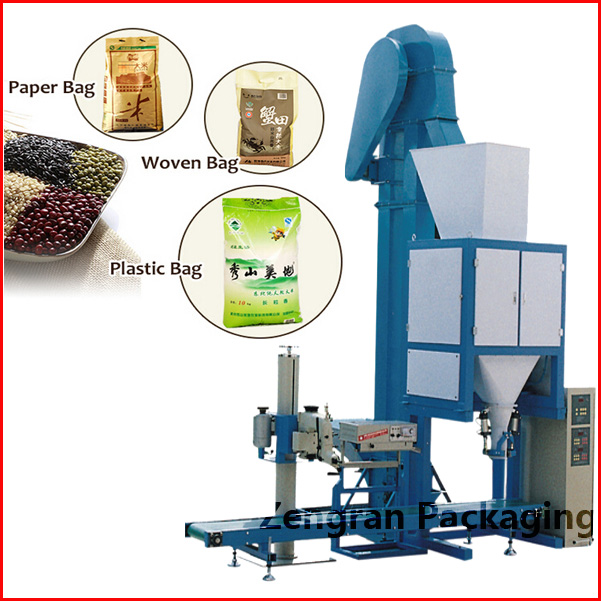

Semi-automatic bagging machine for granule , Semi Automatic Weighing And Filling Machine, Zengran Pack

Application:

The machine is suit for semi automatic weighting and packaging for large granule type of materail.

It is widely used on feedstuff, fertilizer, chemical raw material, Sugar Processing industry etc.


Advantage:

The hight of the conveyor base support can be adjust according to bag fhight . much eacy for bag sewing.

Sewing machine have auto-sewing ,auto-wire breaking auto-alarming function.

Touch screen for easy operation.

Can conntect with PC to output the report form reccord by machine.

The bag size, and traget weight and be easy adjust between the machine weighting range.


Technical specification:


ModelFilling rangeSpeedAccuracyMachine weightOverall dimension(mm)Power
CJS2000  50鈥5000g15鈥24bags/min   卤0.2%        1000kg       3100*2600*3585   1kw
CJD50K-D15  1鈥15kg 6鈥10bags/min   卤0.2%        1200kg       3100*2600*3800   1.5kw
CJD50K-S10  1鈥10kg15鈥24bags/min   卤0.2%        1200kg       3100*2600*3600   2kw
CJD50K-S15

  1鈥15kg

(up to 30kg)

 6鈥20bags/min   卤0.2%        1500kg       3100*2600*4200   2kw
CJD50K-S25

  1鈥25kg

(up to 50kg)

 4鈥16bags/min   卤0.2%        1800kg       3100*2600*4700   2kw
