Applications:
It is suitable for weighing packing dry food with irregular shapes and requiring high measuring accuracy,
such as: rice, seeds, bean, grain, pet food, salt, nut, etc non-fragile and granular pdoducts.
Features:
High-speed capabilities up to 80 packs per min
Adjustable capacity from 50-250ml; 250-500ml, 500-1000ml is optional
Accuracy 0.2 to 2g
Omron controls as standard
User-friendly interface
Film track by photo-electric eye & encoder
Servo driven for film transport
Stainless steel systems
Small footprint, Compact, robust and long-life construction
Customized to meet your production, package style and econoic requirements
Optional Device:
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Technical Specifications:
| Item | Salt packing machine |
| Model | ZR-620S |
| Filling | measuring cups |
| Bag style | Back sealed bag,pillow bag |
| Volume/bag | 1000-5000g |
| Bag size | L80-450mm, W100-300mm |
| Packing speed | 5-60 bags/min |
| Control system | PLC+ touch screen |
| material | stainless steel |
| Pneumatic | 0.65Mpa,0.3cbm/min |
| voltage | AC 220V |
| Weight | G.W. 800kg |
| Dimension | L1320*W950*H2550 (mm) |
| Power | 2.5KW |
| Film material | Paper/polyethylene; cellophane/polyethylene; Plated aluminum/polyethylene; BOPP/polyethylene; nylon/polyethylene |
| supplies | different grains or granules, such as sugar, salt, desiccant, coffee, washing powder, glucose, seeds, seasoning, pepper, beans, etc. |
| Main functions | Automatically measure, make bags, fill, seal, cut and print codes. |
Product Name:
Vertical Form Fill Seal Machine , Vffs Machine , Form Fill Seal Machine , Vffs Packaging Machine , Vertical Packing Machine , Form Fill And Seal Machine , Vertical Form Fill Machine , Vertical Form Fill And Seal Machine , Fill Seal Machine , Vertical Form Fill Seal Packaging Machines , Vffs Packing Machine , Form Fill Machine , Vertical Ffs Machine , Form And Fill Machines , Vertical Form Seal Machine , Fill Seal Packaging Machine , Form Fill Seal Bagging Machine,Automatic Packing And Sealing Machine , Laminated Packaging Machine , Ultima Vertical Form Fill Seal Machine , Weight Packaging Machine , Packaging Machine Distributor , 500 Gram Packing Machine, , Plastic Pouch Packing Machine Paper Filling Machine锛孏ranule Packing Machine Factory锛孯ice Packaging Machine Price锛孲ugar Pouch Packing Machine锛孲ugar Vertical Packing Machine锛孋offee Packaging Factory锛孉utomatic Seed Packaging Machine锛孊eans Packing Machine Price 锛孲eed Filling Machine锛孲eed Packaging Machine锛孏ummy Filling Machine锛1kg 2kg 5kg 10kg Sugar/Rice/Salt Packing Machine 锛孲ugar Rice Salt Packaging Machine,Salt Packaging Business ,Anhui Zengran Packaging Technology Co., Ltd.

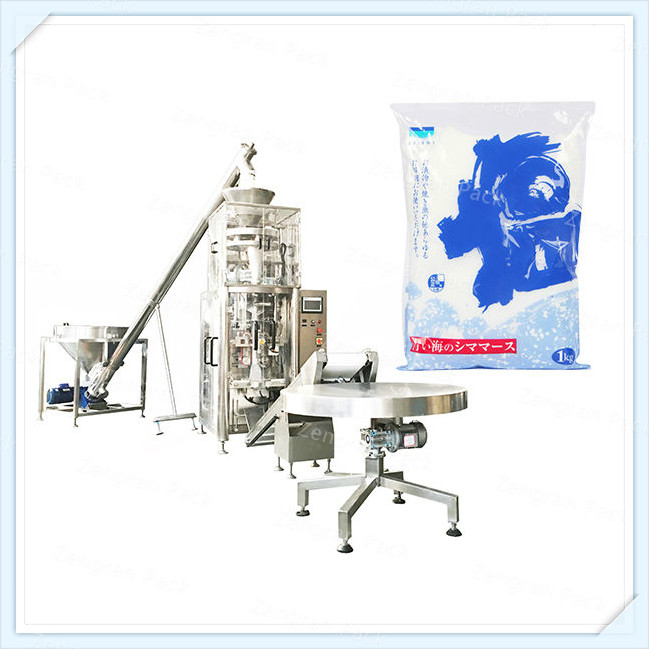

Main Parts:
1. Z shape material elevator
2. Vertical granule packing machine
3. supplies feeding euipment with volume cups
4. prodocuts conveyor
5. rotating products handling tray
Working Process:
1. Z shape elevator send material to the top of material measuring equipments with volume cups
2. vertical packing machine automatically finish making bags, filling, sealing, cuting, printing codes.
3. Finished products will be conveyed to the rotating tray for handling.
