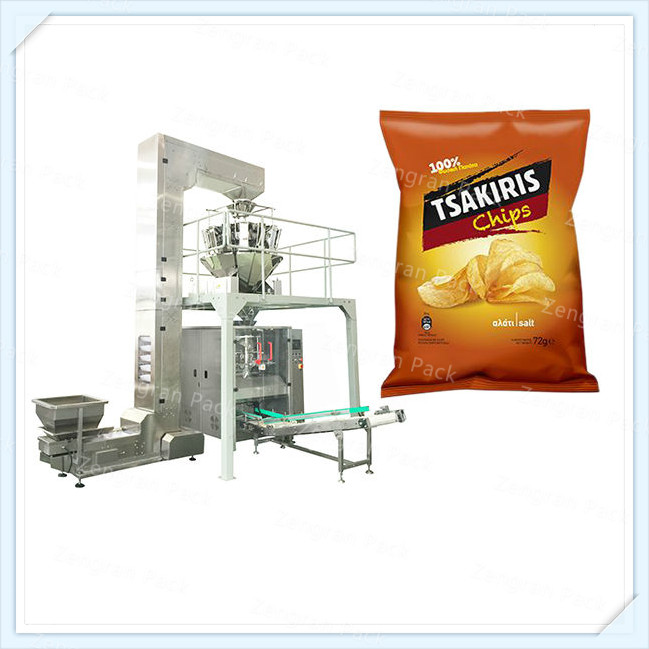

Applications:

It's suitable to use in packing the high accuracy and easy fragile material , such as: puffy food, crispy rice, Potato Chips, Snacks, candy, pistachio, sugar, apple slices, dumpling, chocolate, pet food, small wares etc.

Features:

• Famous Brands electrical parts, stable and functional.

• Three servo motor for reciprocationg pull film system, can reach 180bpm.

• Automatically film recitifying function, smart and convenient.

• High speed packing,save labour, resoures and place.

• Many kinds of languages can be chosen.

Optional Device:

Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.

Technical Specifications:

• Bag Styles:Pillow Bag

• Bag Width:100 to 250mm (3.9 to 9.8")

• Bag Length:50 to 400mm (2.0 to 15.7")

• Product Characteristic:Granules, Powders, Liquids, Pastes

• Dosing System Compatible:Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler

• Running Motion:Intermittent

• Working Efficiency: 180 bags / min

• Control By:PLC with HMI Touch Screen

• Date Coding Can Be:Hot Stamping Coder, Thermal Transfer Coder, Label Applicator

• Options Available:Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper

• Power & Voltage:5 KW

• Compress Air:7MPa 0.4 M3/min

• Dimensions:1600mm*1170mm*1610mm (63.0*46.1*63.4")

• Machine Weight:950 KGS

14 head combination scale:
