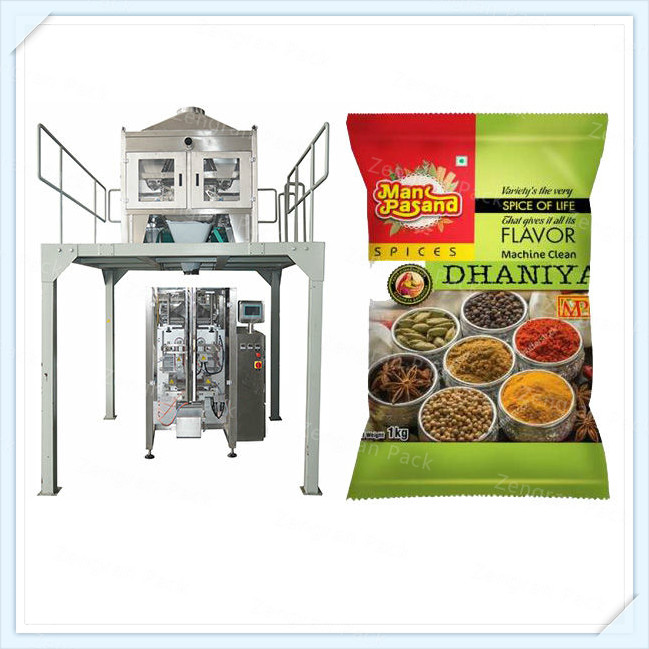

granules vertical form fill seal machine linear scales

granules vertical form fill seal machine linear scales,Granule Packing Machine Factory,Automatic Filling Packing Machine

Applications：

For rice, sugar, salt, tea, coffee, detergent powder, desiccant, pet foods, gravels etc fine granules or coarse powder products.

Features：

Variety of package styles including pillow bag, gusseted bag, block bottom bag, vacuum bag and valve applicators

Wide range of materials available to pack covering all the fine granules and coarse powders

Up to 15 Liter filling volume

Speed up to 60 packs per min

Accuracy 0.1% to 0.5%

Rapid changeover

Customized to meet your production, package style and economic requirements

Rugged, durable equipments to withstand severe environments

Optional Device：

Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device, venting device.

Technical Specifications：

Type	ZR-420	ZR-520	ZR-720
Film Width	Max.420mm	Max.520mm	Max.720mm
Bag Lenth	80-300mm	80-350mm	180-350mm
Bag Width	60-200mm	100-250mm	100-500mm
Film Roll diameter	Max.320mm	Max.320mm	Max.320mm
Packaging Rate	5-60bags/min	5-60bags/min	5-55bags/min
Measurement Range	150-1500ml	2000ml	4000ml
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm
Power	220V 50/60Hz 2KW	220V 50/60Hz 3KW	220V/3KW
Machine Size	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1780(W)1350(H)2050mm
Machine Quality	About 650KG	About 680KG	About 750KG
Optional device	Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Air-filling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag

linear scales：

Main Features:

1,Original program can be restored.

2,Piece counting function.

3,IP65 certificate .

4,Unqualified weight reject.

5,Step motor angle can be set according to different product.

6,99 program can be preset.

7,Each hooper can be a signal weigher.

8,Product mix function is available.

Special Features:

Modular electronic system makes function expanding and maintenance easier and at lowest cost.

Technical Parameters:

Model	ZR-4L3.0
Weighing Range	20~2000g
Weighing Accuracy	±0.2~2g
Max.Weighing Speed	10~50WPM
Hopper Capacity	3.0 L
Operation Panel	7 Inch touch screen
Control system	MCU
Power Supply	AC220V±10% 50HZ/60HZ 1KW
Packing Dimension	1500(L)1200(W)1115(H) mm
Net Weight	160KGS
Packing Weight	235KGS

Product Name:
