Applications锛
Suit for the quantitative weighing of powder products, such as coffee powder, milk powder, chocolate powder, protein powder, flour, wheat powder curry powder, medicine powder etc.
Features锛
Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
Use famous brand electric and pneumatic components, stable and long life circle.
Use superior mechanical components, reduce the wear out loss.
PLC control with stable and high accuracy output.
Two color touch screen 7", one for packing machine, another for multihead weigher .
Optional Device锛
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
Product Name:
Vertical Form Fill Machine , Vertical Form Fill And Seal Machine , Fill Seal Machine , Vertical Form Fill Seal Packaging Machines , Vffs Packing Machine , Form Fill Machine , Vertical Ffs Machine , Form And Fill Machines , Vertical Form Seal Machine , Fill Seal Packaging Machine , Form Fill Seal Bagging Machine , Form Fill Seal Packaging Machine , Vertical Packing Sealing Machine , Form Fill And Seal Packaging Machines , Small Vertical Form Fill Seal Machine , Vffs Bagging Machine , Vertical Form Fill And Seal Packaging Machines , Form Fill And Seal Bagging Machine , Fill And Seal Machines , Form Fill Seal Packaging , Vffs Packaging , Form Fill And Seal Packaging , Form Fill And Seal Packaging Film , Vertical Form Fill Seal Packaging , Packaging Vertical , Vffs Packaging Equipment , Form Fill Seal Bags , Form Fill Seal Bagger , Form Fill And Seal Bagger, Form Fill Seal System , Form Fill Seal ,Vertical Form Fill Seal Bagger , Automatic Form Fill Machine , Conveyor Belt Packaging Machines 锛Anhui Zengran Packaging Technology Co., Ltd.
Technical Specifications锛
| Model | ZR-420 |
| Bag size | L(60~300)脳W(40~200)mm |
| Packing speed | 5~60 bags/min |
| Mad width of film roll | 鈮420mm |
| Driving film type | by a pair of belt controlled by servo |
| Air consumption | 0.6MPa |
| Gas consumption | 0.4m鲁/min |
| Power requirement | 2.2KW, 220V, 50HZ |
| Machine size | L1320脳W920脳H1392mm |
| Machine weight | 450Kg |

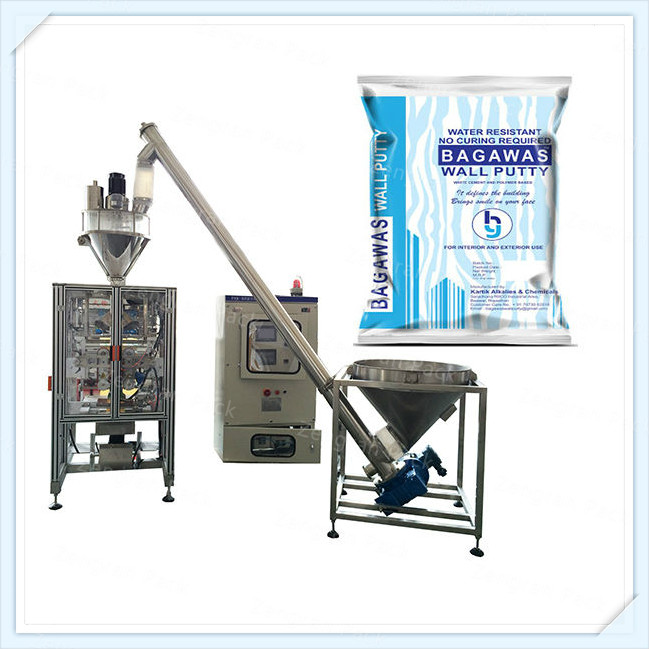

Auger filler
Application:
Auger Filler with servo motor driven, designed for dosing powder products, suit for a wide range of loose powdery products, such as flour, powdered milk, cocoa, icing sugar, baby food, ground spices, finely ground coffee, chemical products, etc.
With ability to Synchronization with most of automatic packing machine, it works to dosing, filling, sealing job. (Read more for Vertical Form Fill Seal With Auger Filler Packing System)
This Series Auger Filler equips side open hopper for easy cleaning, maintenance.
| Model | Auger filler |
| Weighing range | 10~5000g(One auger screw for one differeng weight range) |
| Weighing accuracy(g) | Range<100g, deviation:0.5~1g |
| Range: 100~5000g, deviation:0.5~1% | |
| Filling speed | 10~50 bags per minute |
| Material hopper | 50L |
| Voltage | 220V/380V |
| Gross weight | 200Kg |
