Applications锛
Dession volume automatic matching system packing machine, It is suitable to use in packing variety of liquids, slurries, pastes, filling, etc.

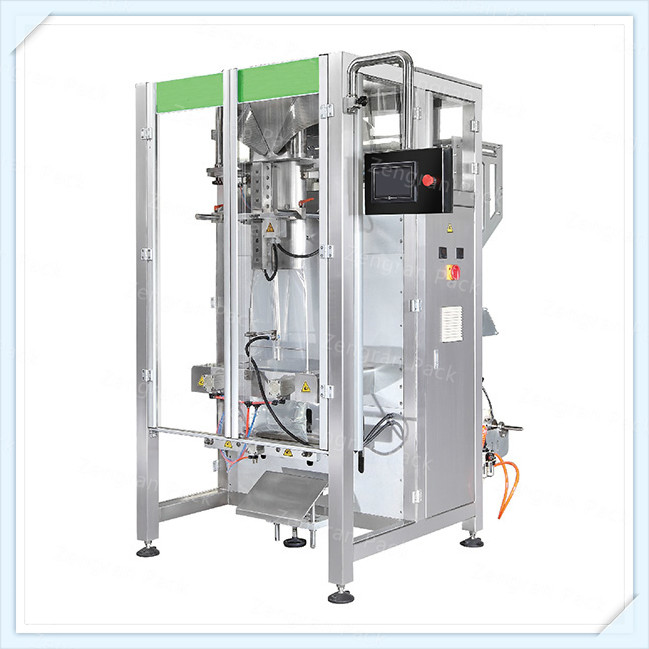

Automatic Liquid & Oil Packaging Machine unit are using for filling medium or high viscosity liquid products . The machine has a storage hopper, electronic control and ZR-200 packaging units, the structure is simple, operation is convenient; Pneumatic parts adopt Germany and Japanese SMC FESTO pneumatic components; Cylinder piston and cylinder body are made of PTFE and 316 l stainless steel materials, in line with the GMP requirements; Filling volume and filling speed can be adjusted With high precision; Drip tight, prevent wire filling device for the filling cocks; The machine can be modified according to customer requirements into explosion-proof filling system; Multi-head filling; Thermal insulation system; Semi-automatic or fully automatic filling system.
Features锛
English and Chinese screen display, operation is simple.
PLC computer system, function is more stable, adjustment any parameters not need stop machine.
It can stock ten dispose, simple to change variety.
Sever motor drawing film, position accurately.
Temperature independent control system, precision get to卤1掳C.
Horizontal, vertical temperature control, suitable for various of complex film, PE film packing material.
Packing type diversification, pillow sealing, standing type, punching etc.
Bag鈥搈aking, sealing, packing, print date in one operation.
Work circustance quiet, low noise.
Technical Specifications锛
| Model | ZR-320L | ZR -420L | ZR -520L | ZR -720L |
| Measuring Range | 150 ~ 800ml | 150-1500ml | 150~2000mL | 150~4000ml |
| Packaging Speed | 5 ~ 70bags/min | 5-60bags/min | 10~50bags/min | 10~40bags/min |
| Bag Width | 50 ~ 150mm | 60-200mm | 80~250mm | 100350mm |
| Bag Length | 80 ~ 240mm | 80-300mm | 80~350mm | 100~450mm |
| Film Roll Width | Max.320mm | Max.420mm | Max:520mm | Max:720mm |
| Machine Size | (L)1185 x (W)935 x (H)1245mm | (L)1217 x (W)1015 x (H)1343mm | (L)1488*(W)1080*(H)1490mm | (L)1716*(W)1260*(H)1820mm |
| Machine Weight | 550KG | 650KG | 750KG | 900KG |
Main electric parts锛
| ARTS | SUPPLIER |
| PLC | Panassonic |
| Touch Screen | Weinview |
| Servo Motor | Panassonic |
| Servo Driver | Panassonic |
| Solid state Relay | Crydom |
| Intermediate Relay | Omron, IDEC |
| Switching power supply | Schneider |
| Air Cylinder | AIRTAC |
| Gear Motor | V.T.V |
| Electromagnetic Valve | SMC |
| Pneumatic FRL | SMC |
| Sensors & controllers | AUTONICS |
Packaging Detail: Plywood Case
Delivery Time: 30days after confirming order
