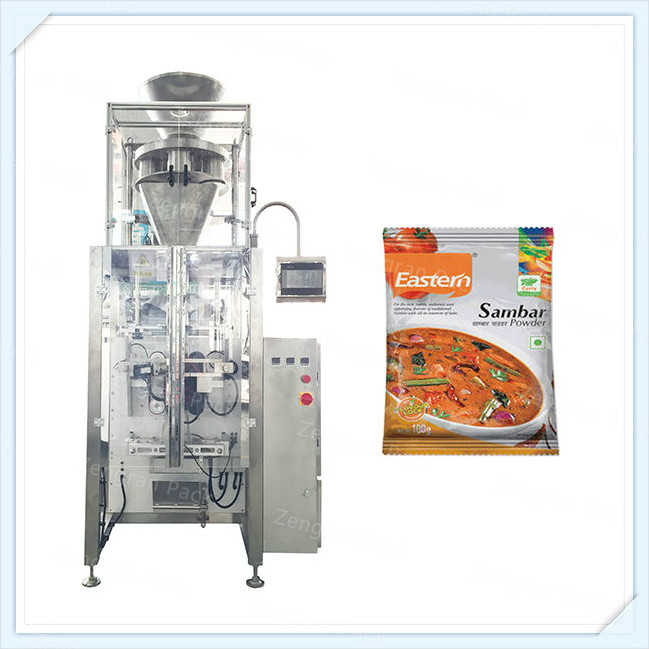

Applications:
This machine is suitable for sticky & hygroscopic powders like fruit powder, flour, coffee, milk powder, spray dried detergent powder, custard powder, glucose powder, bean powder, spices, henna powder, protein powder, baking powder, water chestnut starch,and other powder in center seal pouches etc.
Features:
Standard with combination multi-head weigher, high-precision, high- speed, high automation.Easy to operate and control.
Widely used in food industry for weighing packing irregular and uneven weight products.
Adopts PLC with touch control screen,human machine interface,easy to learn and operate.
Equipped with servo motor & film pulling system and optical tracking devices to ensure accurate bag length and color positioning. Horizontal sealing by servo motor with high speed and high efficiency.
Z type bucket chain material conveyor makes all processes automatically and perfect.
Optional Device:
1.Double Film Pulling Device
2.Angle of plug-in Device
3.Automatic Correct Device
4.Linking Bags Device
5.Punching Device
Technical Specifications:
| Model | ZR-420C | ZR-520C | ZR-720C |
| Sealing Type | Center seal / stand-up,four side seal(optional) | ||
| Feeding System | Auger Filler / Screw Filler | ||
| Packing Film | Composite material:OPP/CPP,OPP/PE,BOPP/VMPET/PE etc | ||
| Cutting | Tooth Cut / Flat Cut(optional) | ||
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Film Roll Diameter | max.320mm | max.320mm | max.320mm |
| Packaging Speed | 10-60bags/min | 10-60bags/min | 5-55bags/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size (L*W*H) | 1217*10151343mm | 1488*1080*1490mm | 1780*1350*2050mm |
| Machine Weight | about 650kg | about 680kg | about 750kg |
Volumetric Cup Filling Machine:
Volumetric Cup Filling Machine is suitable for tiny granule products such as sugar,salt,seed,rice,sesame,gourmet,coffee beans and seasonings, etc.
Main Features:
*Original program can be restored.
*Piece counting function.
*IP65 certificate
*Unqualified weight reject.
*Step motor angle can be set according to different product.
*99 program can be preset.
*Each hopper can be a single weigher.
*Product mix function is available.
Special Features:
*Modular electronic system makes function expanding and maintenance easier and at lowest cost.
Specifications锛
| Model | ZR-500 |
| Weighing Range | 10-1000g |
| Weighing Accuracy | 卤0.2-2g |
| Max. Weighing Speed | 10-50 WPM |
| Hopper Volume | 1000ml |
| Control System | MCU |
| Power Supply | AC220V 卤10% ,50Hz(60Hz) 1KW |
| Net Weight | 120KG |
Product Name:
Vertical Form Fill And Seal Machines , Vffs Parts , Single Serve Packaging Machine , Vertical Form Fill , Automatic Packing And Sealing Machine 锛孎lour Packing Machine锛孎lour Packaging Machinery 锛孎lour Filling Machine锛學heat Flour Packing Machine 锛孎ully Automatic Flour Packing Machine锛孭owder Packing Machine锛孎ine Powder Filling Machine锛 Detergent Powder Pouch Packing Machine ,Coffee Bagging Equipment , Coffee Packaging Machine銆丳rotein Powder铔嬬櫧绮 Packaging Machine 锛孭owder Sachet Filling Machine , Powder Sachet Packaging Machine锛孭owder Packaging Machine Price 锛 Flour Packing Machine锛孲alt Bagging Machine , Salt Machine Price锛 Rock Salt Bagging Machine 锛孉utomatic Salt Packing Machine锛孎lour Packaging Machinery 锛孎lour Filling Machine锛學heat Flour Packing Machine 锛孎ully Automatic Flour Packing Machine锛孋heap Powder Packing Machine锛孎ood Powder Packaging Machine锛 Auger Type Powder Filling Machine锛孭owder Auger Filling Machine锛孭owder Bag Filling Machine , Powder Filler Machine 锛孷ertical Powder Packing Machine锛孭owder Packaging Machine Manufacturers.
