Applications锛

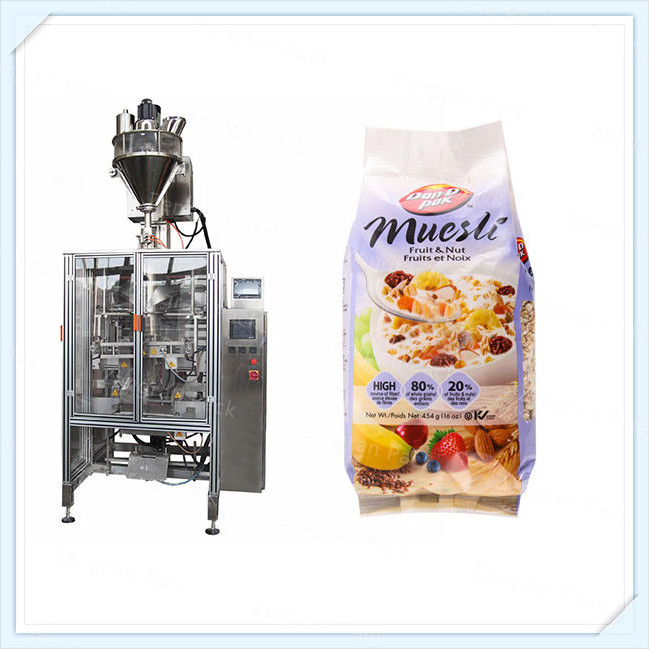

Vertical Form Fill Seal With Auger Filler Packing System for powder products,such as milk, flour, spices, pharmacy, ground coffee, cocoa powder etc.
Features锛
Simens PLC controller, Neumatics brand festo.
Touch screen interface for easy operation.
Intelligent temperature control system.
Servo drive for film pulling system.
Photo sensor for automatic tracking eye marks.
Date printer and film feeding system synchronous working.
Servo motor drive screw, split hopper could be easy open and clean.
Product Name:
Vertical Form Fill And Seal Machines , Vffs Parts , Single Serve Packaging Machine , Vertical Form Fill , Automatic Packing And Sealing Machine , Laminated Packaging Machine , Ultima Vertical Form Fill Seal Machine , Weight Packaging Machine , Gusset Bag Packaging Machine, Packaging Machine Distributor , 500 Gram Packing Machine, , Plastic Pouch Packing Machine ,Paper Filling Machine , Small Weighing And Packing Machine , Vffs Baggers , Pouchfill Packaging , Full Automatic Packaging Machine , Pouch Bag Packaging Machine , Vertical Fill And Seal Machines , Automatic Bag Filling And Sealing Machine , Chips Pouch Packing Machine , Vertical Form Fill Seal Machine Manufacturers , Nitrogen Bagging System , Vffs Machine Manufacturers , Automatic Atta Packing Machine Manufacturers , Form Fill And Seal Plastic.Sugar Pouch Packing Machine銆Sugar Vertical Packing Machine锛Sugar Packing Machine Price锛 Gummy Filling Machine锛1kg 2kg 5kg 10kg Sugar/Rice/Salt Packing Machine 锛Sugar Rice Salt Packaging Machine锛Sugar Filling Machine.Auger Filler , Vertical Auger Filler , Auger Filler Machine , Auger Filler Packing Machine , Auger Filling System , Automatic Auger Filling Machine.
Technical Specifications锛
| Power | 5 KW | Film width | Max.820mm |
| Dimension(L*W*H) | 1600*1530*2110 mm | Max width of the Film | 820 mm |
| Weight | 850 KG | Voltage | 110V/220V, 50HZ/60HZ |
| Speed | 5~50Bags/Minutes | Function | Sealing , Wrapping |
| Bag Width | 250~400mm | Warranty | 1 year |
| Bag Length(Max) | 500 mm | Material quality | 201/304 Stainless Steel |
| Filling range | 15 L | Control | PLC |
| Packaging Type | Bags , pouch , Stand-up Pouch | ||
| Film Roll Diameter | Outer diameter 鈮350mm.Inner diameter 75 mm | ||
| Packaging Material | OPP, CPP OPP, CE PET, PE NILO, PE PE | ||
| Bag sealing type | Standard pillow bag, pillow bag with gussetd,bottom bag and much more | ||
| Application | Chemical, Commodity, Commodity, Food, Machinery & Hardware, Medical, Textiles | ||
| Optional device | Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Air-filling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag | ||
| Model | Auger filler |
| Weighing range | 10~5000g(One auger screw for one differeng weight range) |
| Weighing accuracy(g) | Range<100g, deviation:0.5~1g |
| Range: 100~5000g, deviation:0.5~1% | |
| Filling speed | 10~50 bags per minute |
| Material hopper | 50L |
| Voltage | 220V/380V |
| Gross weight | 200Kg |
