Mainly used in agricultural products, food, chemical industry, such as corn seeds, fertilizer and other granular materials, can complete automatic measuring, automatic filling and other work.
It is suitable to work with full automatic packaging machine together.
|

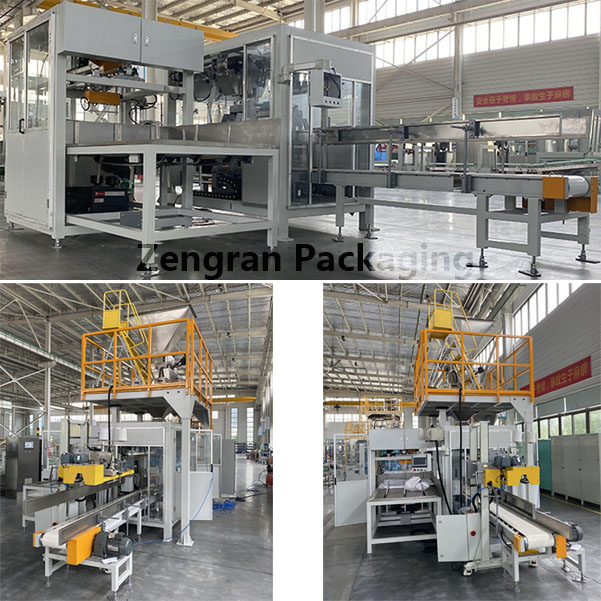

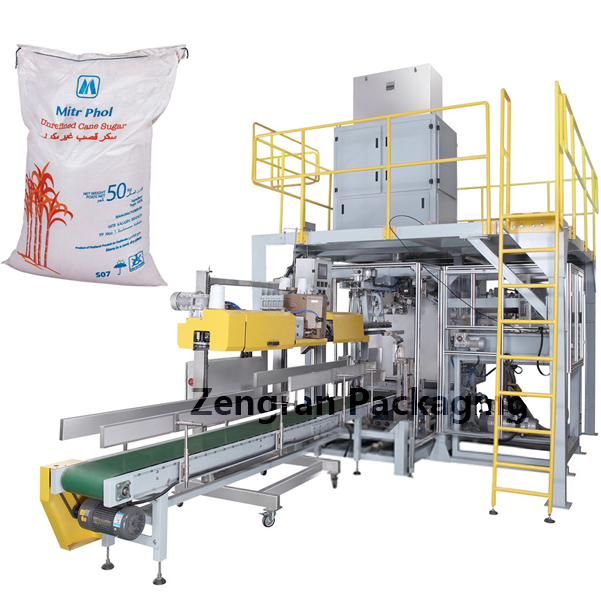

Automatic Heavy Bag Packing Machine
1.Function:
The unit consists of equipment bags library, take the rationale bag device, the mechanical hand bags, bag- cutting device, hold the bag pushing device, pocket guides, vacuum system and control system components. It is suitable to pack powder or granular product.
2. Feature:
Automatic granules to bag packing unit (hereinafter referred to as the packing unit) of the company developed a new type of packing granular material for agricultural, food and other industries. The packing unit automatically for opening bags, filling, sending packages, sealing and other functions. The packing unit has a high packing capacity, easy maintenance, stable and reliable for a wide range.
3. Specification:
Speed | 5-15 bags/min/set |
Bags size | Length: (800 ~ 1050mm) Width: (500 ~ 610mm) |
Bag type | pp woven bags, plastic bags, paper bags |
Air consumption | 0.8Mpa 0.6m3/min |
Power source | 3 phase 380V 50Hz 6Kw |
Dimension | L4885 x W2950x H4500mm |
Weight | 2500kg |
Automatic Double Heads Linear Scale
1. Brief introduction:
Mainly used in agricultural products, food, chemical industry, such as corn seeds, fertilizer and other granular materials, can complete automatic measuring, automatic filling and other work.
It is suitable to work with full automatic packaging machine together.
2. Product features:
Double stations independent weighing system, combination feeding by using cylinder self discharging and linear vibration, rapid weighing, high weighing accuracy.
1. High resolution, single point cantilever sensor, high sensitivity, double stations alternate work, weighing is more stable.
2. Chinese and English touch screen operation interface, parameter setting is clear at a glance, and the operation is more humanized. It can set a variety of different product parameters to realize the selection of different products and measurement values.
3. The humanized inside opening bag clamping device is safe and convenient to operate. It is controlled by PLC, which can realize linkage with packaging equipment.
3. Specification:
Packing weight | 25~50kg |
Weight accuracy | 卤0.2% |
Packing speed | 7-14times/min |
Weighing Hopper Capacity | 90L |
Power supply | 220V 50Hz 0.5Kw |
Working Air Pressure | 0.5~0.8MPa |
Dimension(mm) | 1290(L)*860(W)*2380(H) |
Machine Weight | 500kg |
Automatic Heat Sealer&Folding Stitching Sewing Output Conveyor
1. Feature:
The sewing machine is widely used in food, feed, chemical, mining, coal, port and other industries to contain powder, sealing sewing use granular articles of plastic woven bags, sacks, bags, paper bags and other packaging bags. It adopts light controlled switch to control starting and stopping, automatic cutting of electronically controlled pneumatic cutter. A solenoid controlled automatic wire braid cutting device. The bag is fed into the machine, by the presser foot, contact actuating device, the proximity switch start sewing operation, folding&sealing automatically after the start, automatically reset device, close to switch off the machine will stop automatically when the cutter solenoid controlled start action, automatic cutting plait. Then, the cutter is automatically reset.
This product is composed of two motor control systems and belt conveyor system. The whole machine is controlled by a photoelectric switch to start and stop. Two governors adjust the speed of the sub-lot and the sign-sending motor respectively. The speed can be adjusted arbitrarily according to the speed of the production line.
2. Specification:
Bag type | Kraft paper bags or pp woven bags |
Max. sewing speed | 2000rpm |
Work speed | 1800rpm |
Sealing width | Max. 810mm |
Stitch adjustment range | 6.5-11mm |
Stitch pattern | Double thread chain stitch 401 |
Stitch specification | 21s/5, 21s/3Polyester thread |
Presser lift height | 11-16mm |
Needle type | 80800*200#-250# |
Pulley diameter | 114mm |
Wire cutting device | Electronically controlled pneumatic |
Motor form | Brake Motor |
Total Power | 1550W |
Power supply | AC 220V/50Hz |
Overall Dimensions | 4000*750*1800mm |
Weight | 180kg |
Work Platform & Machine Handrail
1. Technical parameter:
Model: PT-3300
Height: 3300mm
Material: Carbon steel
Weight: 320KG
Size(mm): 3000(L)*3000(W)
Overall Dimension: 3000(L)*3000(W)*3300(H)mm
2. Application:
It is mainly use to support the vibration weigher, and it is also the general accessorial equipment in the packaging system.
3. Main feature:
1. It is compact, stable and safe with guardrail and ladder.
2. Both of the carbon steel with spurt models or stainless steel available.
Our Services:
1. one year guarantee for whole machine except for wear parts;
2. 24 hours technical support by email;
3. calling service;
4. user manual available;
5. reminding for the service life of the wearing parts;
6. installation guide for clients from both China and abroad;
7. maintenance and replacement service;
8. whole process training and guidance from our technicians. High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
