1, Brief Introduction:
This unit is mainly to complete the fully automatic packaging process of neatly loading the already packaged small bag products (100~1000g) into composite film plastic bags and heat sealing according to the requirements (form of arrangement: single or double-row horizontal grouping etc.) so as to realize fully automatic operation from small pack packaging of bulk material to packaging of composite film plastic bags, save input in manpower, material and financial resources, reduce production cost for customers as well as improve production efficiency. This unit is widely used for packaging of powdery and granular materials like washing powder, salt, seeds, milk powder, etc. and is the first choice machine of many large companies for secondary packaging.
2, The equipment mainly consists:

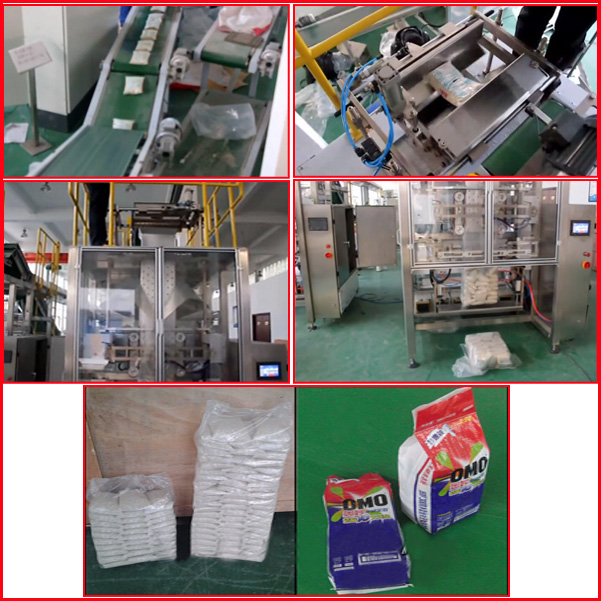

double-layer inclined conveyor, high-speed conveyor, counting and unscrambling machine, vertical bag-making, filling and packaging machine and product conveyor, etc.

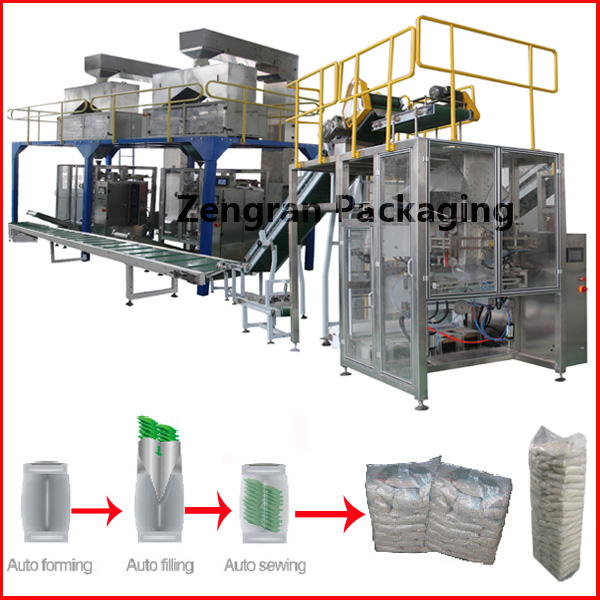

3, Production process flow:
pouch 鈫 horizontal conveyor 鈫 double-layer inclined conveyor 鈫 high-speed conveyor 鈫 counting and unscrambling machine 鈫 vertical bag-making packaging machine 鈫 Sealing 鈫 product output.
4, This unit has the following advantages:
(1). VFS1100 fully automatic packaging machine can realize the functions of automatic bag making, product counting, filling, heat sealing and output. Achieve unmanned packaging process.
(2).This unit adopts touch screen control, and features convenient operation, specification changeover and maintenance as well as safety and reliability.
(3). It can achieve multiple forms of arrangement in order to satisfy customer鈥檚 requirements.
5, Technical parameters:
Model | Packaging scope | Packaging speed | Form of arrangement |
VFS1100 | 150~1000 | 2~4 for big bag | Horizontal single or double-row grouping |
6, Product Name:
Zengran Packaging锛1kg 2kg 5kg 10kg Sugar/Rice/Salt Bag Pouch Packing And Baling Machine , Automatic Secondary Baler Machine , Bag In Bag Automatic Bagging Machines , Bag In Bag Packing Machine , Buy Packing And Baling Machine , Coffee Bag In Bag Packing Machine , Filler & Closer (Sachets In Bag) , Filler & Closer (Sachets In Bag) Manufacturer , Salt Bag In Bag Automatic Bagging Machines , Sugar Bag Baling Into Big Bag Baling Machine.
7, Youtube Video Link:
https://www.youtube.com/watch?v=zOQRyfsqMhQ&feature=youtu.be
