Applications:

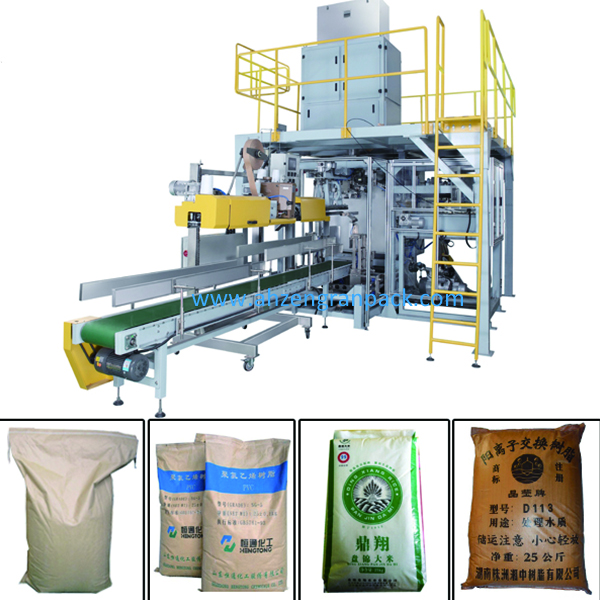

Automatic bag feeding packaging machine unit is specially suitable for granular material, the packaging material is paper bag, PE bag, woven bag, the packing range is 5-25kg, the maximum speed can reach 5-15bags/min. High efficiency, advanced design suitable for various requirements.
Features:
The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Automatic picking-up bag system: Automatically pick up the prepared bag.
Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.
Hugging bag and conveying mechanism: Hugging bag and conveying bag.
Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)
Electrical control part: Completely control the whole packaging unit.
Automatic weighing machine: weighing machine.
Conveyor: Convey material automatically.
Technical Data:
Packaging material | prefabricated woven bag (lined with PP/PE film) |
Size of bag making | (500-700mm)x(300-400mm) LXW |
Measuring range | 5-25KG |
Measurement accuracy | 卤10G |
Packaging speed | 5-15 bags/min (slight variation depending on the packaging material, bag size etc.) |
Ambient temperature | -10掳C~+45掳C |
Power | 220V 50HZ 3Kw |
Air Consumption | 0.5~0.7MPa |
External dimensions | 5860x2500x4140mm (L x W x H) |
Weight | 1600kg |
