I. Introduction:

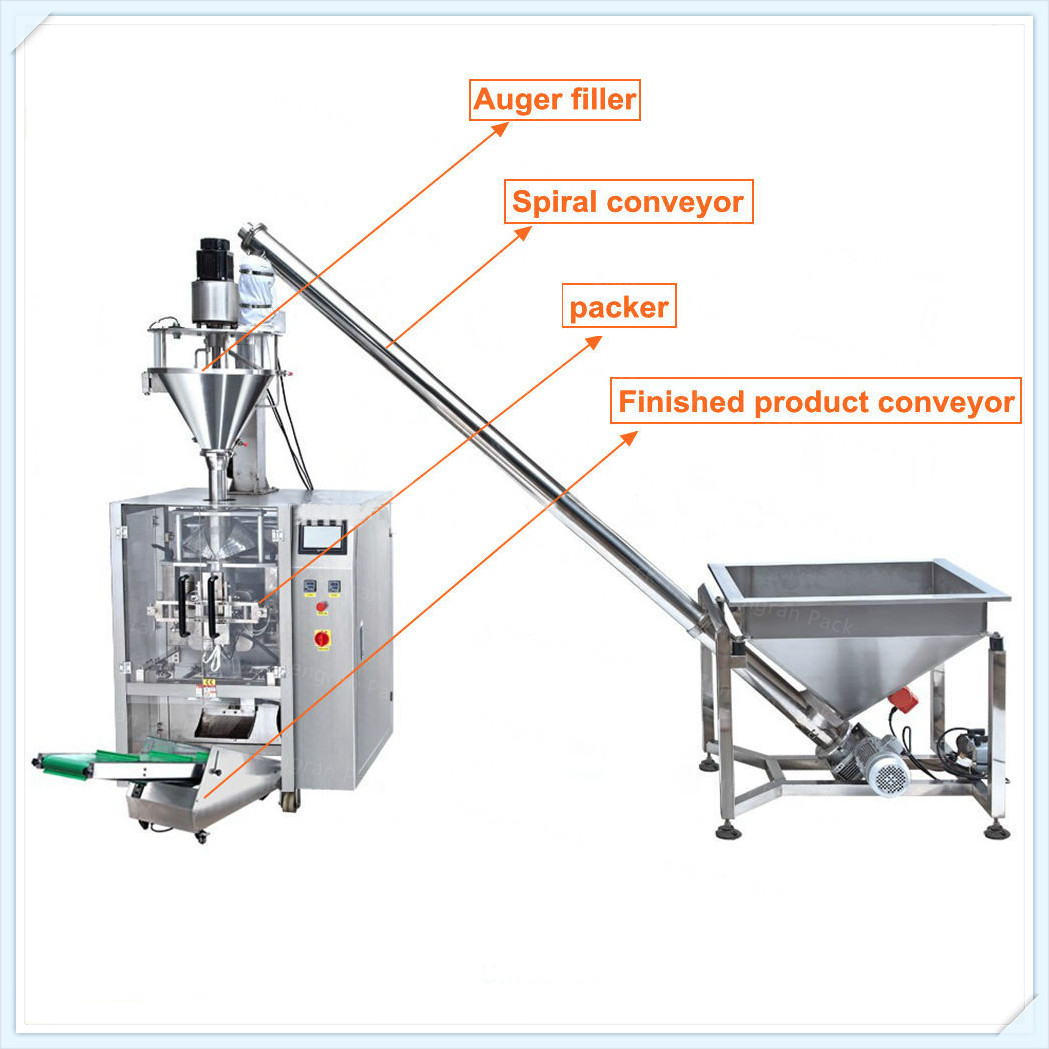

This unit is for powder products automatic bag making, material weighing & Filling, sealing, date coding etc. Including bellowing machines:
鉃 Incline screw elevator with hopper;
Contact parts made of S.S304, automatic feeding. Equips level switch and control box.
鉃 CJSL series auger filler;
This machine equips Panasonic Servo Motor, level switch and mixture motor automatic filling, controlled by packaging machine. Contact parts made of S.S304
鉃 LA-VFFS series bagging machine;

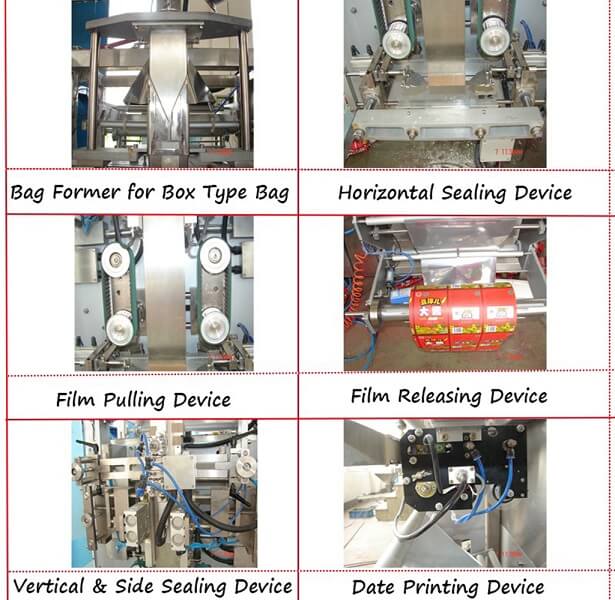

This machine equips with bag-making, cutting, code printing, etc. to make box bag, OMROM PLC, TAIWAN Touch Screen, PANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,etc. Stainless Steel for body. The packing machine includes one set Hot foil batch coding unit. Contact parts made of S.S304.
鉃 Take off conveyor belt.
Made by Contact parts made of S.S304
II.Application:
III.Technical information:
Model | Filler/Dosing system | Bag type/ Bag Material | Roll Film width | Bag size:(mm) | Packaging speed |
LA320 | CJSL200 | Pillow/gusset type bag; LDPE/ Laminated Roll film | Max 320mm | W(60-150)*L(80-180) | Max 70BPM |
LA420D | CJSL2000 | Max 420mm | W(80-200)*L(80-280) | Max 70BPM | |
LA540B | CJSL2000 | Max 540mm | W(120-260)*L(80-340) | Max 50BPM | |
LA730B | CJSL2000/CJSL5000 | Max 730mm | W(150-350)*L(120-460) | Max 50BPM | |
LA780B | CJSL5000 | Max 780mm | W(150-375)*L(120-460) | Max 40BPM | |
LA1100 | CJL25K | Max 1100mm | W(300-535)*L(300-650) | Max 10BPM | |
LA1500 | CJL25K | Max 1500mm | W(350-725)*L(300-900) | Max 8BPM | |
LAH540 | CJSL2000 | Quad/Pillow Bag. Laminated roll film | Max 540mm | Front width: 50-190; Side width: 35-90; Edges seal:5-8; bag length:120-340; | Max 50BPM |
LAH730 | CJSL2000/CJSL5000 | Max 730mm | Front width: 60-260; Side width: 45-120; Edges seal:5-8; bag length:120-460; | Max 50BPM | |
LA540G | CJSL2000 | Pillow bag/ Laminated roll film | Max 540mm | W(120-260)*L(80-340) | Max 120BPM |
Product Name:
Zengran Packaging ,Vertical Form Fill Seal Machine , Form Fill Seal Machine , Form Fill And Seal Machine , Vertical Form Fill Machine , Vertical Form Fill And Seal Machine , Fill Seal Machine , Vertical Form Fill Seal Packaging Machines , Vffs Packing Machine , Form Fill Seal Packaging Machine ,Packaging Coffee Machine , Packaging Machine Distributor , Automatic Filling Packing Machine , 500 Gram Packing Machine , Protein Powder Packaging Machine , Food Pouch Filling Machine , Plastic Pouch Packing Machine , Automatic Sand Bagging Machine , Powder Sachet Filling Machine , Powder Sachet Packaging Machine , Paper Filling Machine , Small Weighing And Packing Machine , Sugar Pouch Packing Machine , Sugar Vertical Packing Machine ,Vertical Packing Sealing Machine , Form Fill And Seal Packaging Machines , Small Vertical Form Fill Seal Machine , Vffs Bagging Machine , Vertical Form Fill And Seal Packaging Machines , Form Fill And Seal Bagging Machine , Vertical Form And Fill Machine , Vertical Sachet Filling Machine , Vertical Powder Packing Machine , Fill And Seal Machines , Liquid Vertical Form Fill Seal Machines , Form Fill Seal Packaging , Vffs Packaging , Form Fill And Seal Packaging , Form Fill And Seal Packaging Film , Vertical Form Fill Seal Packaging , Packaging Vertical , Vffs Packaging Equipment , Form Fill Seal Bags , Form Fill Seal Bagger , Form Fill And Seal Bagger , Fine Powder Filling Machine , Form Fill Seal System , Form Fill Seal , Quad Bag Packing Machine , Quad Seal Bag Packaging Machine , Salt Packaging Business , Detergent Powder Pouch Packing Machine , Detergent Powder Packing Machine Manufacturers , Detergent Packaging Machine , Vertical Form Fill Seal Bagger , Automatic Form Fill Machine , Sugar Filling Machine , Conveyor Belt Packaging Machines , Vertical Form Fill And Seal Machines Australia , Vffs Parts , Single Serve Packaging Machine , Vertical Form Fill , Automatic Packing And Sealing Machine , Laminated Packaging Machine , Ultima Vertical Form Fill Seal Machine , Weight Packaging Machine , Rice Packaging Machine Price , Gusset Bag Packaging Machine,Food Powder Packaging Machine锛 Auger Type Powder Filling Machine锛Powder Auger Filling Machine锛Powder Bag Filling Machine , Powder Filler Machine.
Note:
CJSL200 Auger filler: 20g-200g;
CJSL2000 Auger filler: 50g-2000g;
CJSL5000 Auger filler: 500g-5000g;
