Integrated packaging system, including powder Screw elevator, Auger filler dosing system, automatic bag making machine and accessories units.
|
Product description:

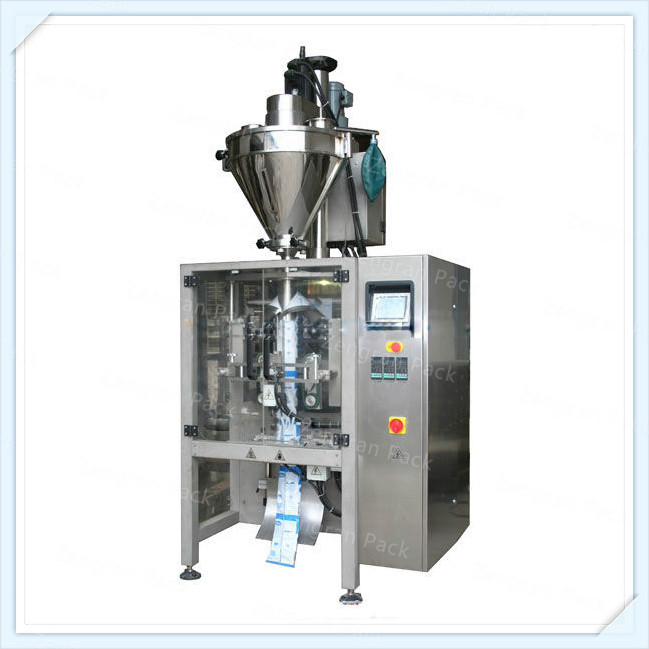

Vertical Form Fill Seal With Auger Filler Packing System for powder products,such as milk, flour, spices,pharmacy,ground coffee,cocoa powder etc.
Integrated packaging system, including powder Screw elevator, Auger filler dosing system, automatic bag making machine and accessories units.
Features:
High-speed capabilities up to 70 packs per min
Variety of package styles including pillow bag, gusseted bag, block bottom bag, vacuum bag and valve applicators
With the ZR-Q series the production of block bottom bag sealed at the 4 edges for more stability (quad seal pack) is available.
Omron controls as standard
User-friendly interface
Rapid changeover
Stainless steel systems
Customized to meet your production, package style and economic requirements
Technical Parameters:
| Model | ZR-420 | ZR-540 | ZR-730 |
| Bag type | Pillow type bag; Gusseted bag /Flat bottom bag(Option) | ||
| Operation Mode | Intermittent | ||
| Speed | Up to 80 bags/min | 20 to 70bags/min | |
| Bag Length (single stroke) | 20 to 280mm (0.8 to 11'') | 50 to 340mm (2.0 to 13.4'') | 50 to 460mm (1.9'' to 18'') |
| Bag Width | 40 to 200mm (1.6 to 7.9'') | 80 to 260mm (3.1 to 10.3'') | 80 to 350mm (3.1'' to 13.8'') |
| Packing Weight | 10g to 1000g | 200g to 2000g | 500g to 3500g |
| Reel Film Width | 鈮420mm (16.5'') | 鈮540mm (21.2'') | 鈮730mm (28.7'') |
| Reel Outer Dia. | 400mm (15.7'') | 400mm (15.7'') | 500mm (19.7'') |
| Reel Inner Dia. | 75mm (2.9'') | ||
| Film thickness | 0.04-0.12mm (40-120mic.) | ||
| Voltage | AC220V/50Hz, 1phase or Per customer specification | ||
| Power Consumption | 3KW | ||
| Compressed Air Requirement | 0.6 MPa0.36 M3/min | ||
| Machine Weight | 600Kg | 800Kg | 1000Kg |
Auer Filler Machine
Auger Filler Pouch Packing Machine suits packaging of all kinds of powder, like milk powder, coffee, spices, additives, and more. Equipped with feeding and measuring devices, the packing machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow. PLC control system and large touch screen make the powder VFFS (Vertical Form Fill Seal) Collar Type Auger Filler Pouch Packing Machine user-friendly.
| Machine Name | VFFS. Servo Augar Machine |
| Model | 01 |
| Filling Capacity | 50 - 250 to 500 - 1000 gm |
| Machine Speed | 1000 to 4000 Pouches / Hr |
| Total Power | 2.5 KW 220v. Single Phase 50 / 60Hz |
| Air Compresser | 8 CFM with 6 bar Pressure |
| Weigh | 430 Kg {Approx} |
| Dimension | 1250mm X 1200mm X 1800mm (D x W x H) |
| Main Features | powder VFFS machine provides low cost high gain, high speed and efficiency. The powder vertical form fill seal machine comes with famous brand PLC control system and large touch screen, and thus is easy to operate. The vertical packaging machine makes use of film drawing down system and horizontal sealing controlled by servo motor. The powder VFFS machine minimizes the loss, by use of auto alarm design. Equipped with feeding and measuring devices, the packing machine accomplishes feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery, in a continuous flow. As to the way of bag making, the vertical form fill seal machine can make pillow type bags and standup bags as per customer need. |
