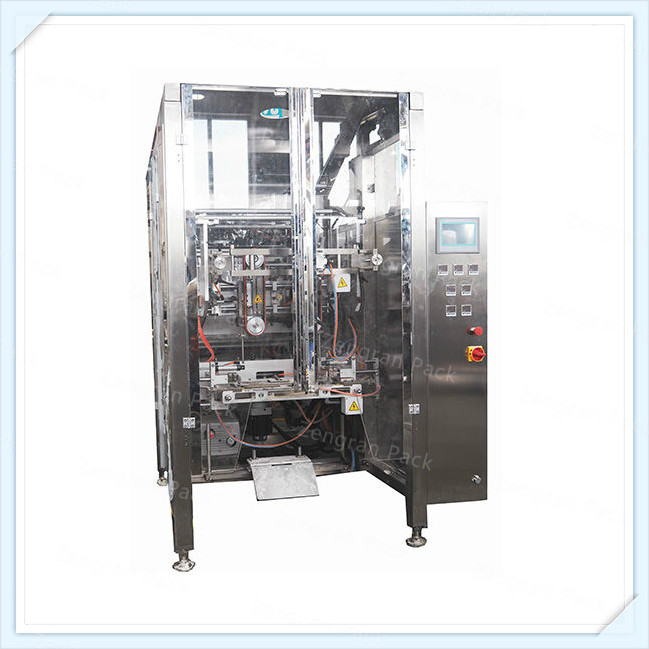

Product description:
Design For Small Packages
Make Pillow Bag, Gusseted Bag
Application:
It's suitable to use in packing the high accuracy and easy fragile material, such as: puffy food, crispy rice, potato chips, snacks, candy, pistachio, sugar, apple slices, dumpling, chocolate, pet food, small wares etc.
Features锛
PLC Control with Touch-Screen HMI
Servo technology with high performance
Simple and fast bag size changeover without tools
Full configuration for heat-sealable or polyethylene materials
Compact small size design, small footprint
Easy to maintain-low maintenance
Additional Info锛
Bag Styles: 4 edge seal
Bag Width: 75 to 130mm (3.0 to 5.1")
Bag Length: 100 to 380mm (4.0 to 15.0")
Product Characteristic: Granules, Powder, Liquid, Paste
Running Motion: Intermittent
Working Efficiency: 5-50 Bags/Min
Control By: PLC with HMI Touch Screen
Date Coding Can Be: Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
Options Available: Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
Power & Voltage: 6 KW
Compress Air: 65MPa 0.4 M3/min
Dimensions: 1500*1170*1800mm (59.1*46.1*70.9")
Machine Weight: 950 KGS
Product Name:
Vertical Form Fill And Seal Machine , Fill Seal Machine , Vertical Form Fill Seal Packaging Machines , Vffs Packing Machine , Form Fill Machine , Vertical Ffs Machine , Form And Fill Machines , Vertical Form Seal Machine , Fill Seal Packaging Machine , Form Fill Seal Bagging Machine , Form Fill Seal Packaging Machine , Vertical Packing Sealing Machine , Form Fill And Seal Packaging Machines , Small Vertical Form Fill Seal Machine , Vffs Bagging Machine , Vertical Form Fill And Seal Packaging Machines , Form Fill And Seal Bagging Machine , Fill And Seal Machines.
Technical Backup锛
Most of our goods is made to order according to the exact project requirements.
If possible, please inform us more details about your project, such as material, weight range, speed, bag size, etc.
You'd better contact us in advance before your ordering.
We guarantee the whole machine for 15 months from the date of shipment;
If needed, overseas serviceman is available from us;
Within the warranty period, as for the products quality problem, the replacement of spare parts and courier fees will be free of charge, but our staff鈥檚 onsite service鈥檚 expense, daily accommodation and compensation will be paid according to our standard;
As for the problems happen out of the length of warranty, or caused by wrong operation or repair without authorization within the length of warranty, we will collect reasonable charges according to our service policy;
We鈥檒l update with photo and vcr for the goods performance before shipment in order to ensure everything is correct;
Quick reaction within 24 hours to all the complain or feedbacks;
