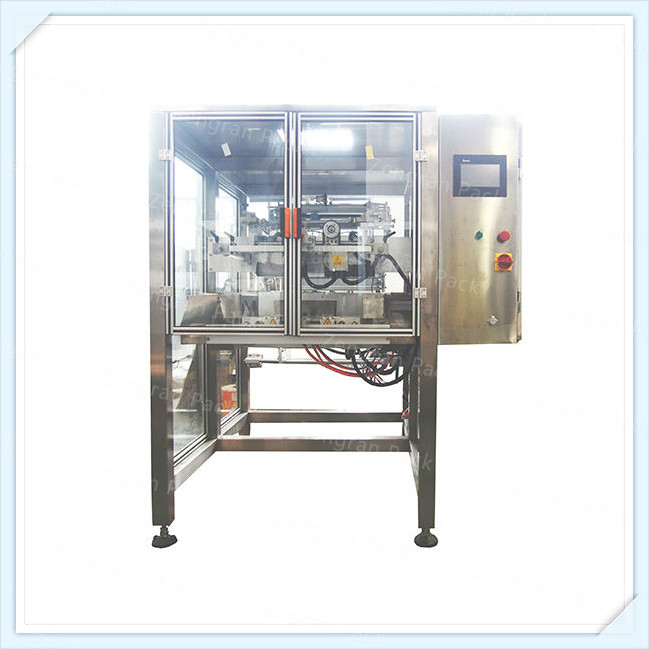

Product description
High Speed Continuous Motion
Reciprocating By Servo Technology
Design For Small Packages
Make Pillow, Guesset & Block Bottom Bags
Synchronize Scale Working@120 BPM
Product Features
Famous Brands electrical parts, stable and functional.
Three servo motor for reciprocationg pull film system, can reach 180bpm.
Automatically film recitifying function, smart and convenient.
High speed packing,save labour, resoures and place.
Many kinds of languages can be chosen.
Additional Info
Bag Styles: Pillow Bag
Bag Width: 60 to 200mm (2.4 to 7.9")
Bag Length: 50 to 300mm (2.0 to 11.8")
Product Characteristic: Granules, Powders, Liquids, Pastes
Dosing System Compatible: Volumetric Cup, Piston Filler, Linear Scale, Multi-Head Scale, Auger Filler
Running Motion: Intermittent
Working Efficiency: 180 bags / min
Control By: PLC with HMI Touch Screen
Date Coding Can Be: Hot Stamping Coder, Thermal Transfer Coder, Label Applicator
Options Available: Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller, Heavy Bag, Heating & Mixing Hopper
Power & Voltage: 8 KW
Compress Air:7MPa 0.3 M3/min
Dimensions: 1380mm*980mm*1400mm (54.3*38.6*55.1")
Machine Weight: 600 KGS
Main Features
1.With the function auto filling, measuring, bag forming, code printing, sealing and cutting. Bag-making system adopts step motor with high precision
2.Touch screen display.
3. Controller adopts Chinese or English displaying, can see the working conditions directly.
4. With intelligent photoelectric controller system.
5. Machine body full of 304 stainless steel.
6. Liquid filler, high accuracy.
7. Good visibility with side-open protective platens, operate safely.
8. Adopt the newest hopper sets, easy to adjust and clean, no need adjust again after clean, so that can improve working efficiency.
9. This machine is suitable for the packing of granule products, bag can choose from 3-side or 4-side seal or back seal according to customer needs.
10. Ribbon printer is addable according to customer needs, which can print one to three lines letter, date of produce and batch number.
