APPLICATION

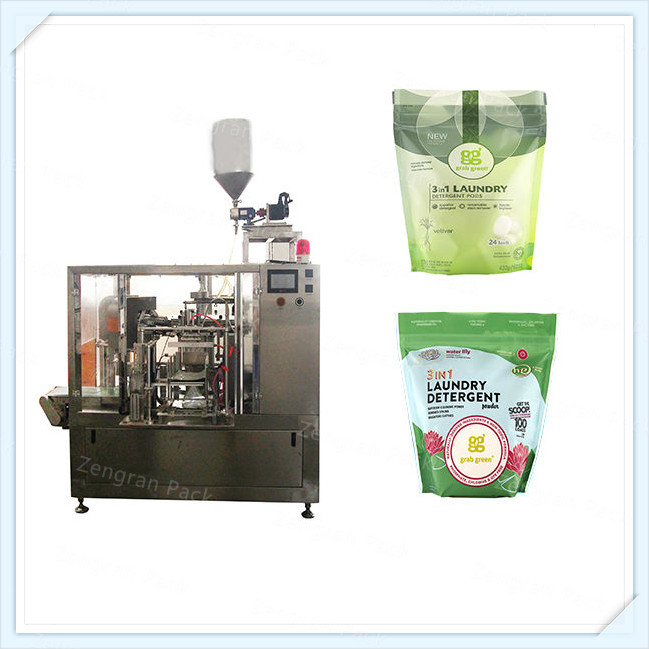

This automatic packing machine unit is specialized in liquid and paste such as juice, ketchup, b茅chamel, capsicum paste, liquid soap and edible oil etc. This machine includes the rotary packing machine can liquid & paste filler.
Machine Description
Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
The part where touch to the materials is made of stainlesss steel and according with the request of GMP.
This automatic packing machine unit is specialized in liquid and paste such as syrup, ketchup, bechamel, capsicum paste, scour. This machine includes the rotary packing machine and liquid & paste filler.
Easy To Operate:PLC control, man-machine interface is friendly.
Variable frequency speed regulation:Used frequency conversion adjustment device, the speed can be adjusted within the range according to the needs of reality in production.
Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.
The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
Use no oil vacuum pimp,avoid polluting the enviroment in the production.
Easy to clean:the machine table can be washed.
Product Name:
Rotary Packing Machine , Filling Machine For Nuts , Flour Paper Bag Packing Machine , Rotary Pouch Filling Machine , Doypack Sealing Machine , Doypack Filling And Sealing Machine , Stand Up Bag Filling Machine , Automatic Stand Up Pouch Packing Machine , Premade Pouch Filling Sealing Machine , Stand Up Pouch Filling Equipment , Stand Up Pouch Filling Machine , Zipper Pouch Machine , Doypack Pouch Filling Machine , Zipper Pouch Sealing Machine , Rotary Bagger
MAIN TECHNICAL PARAMETERS
| Working position | Six/eight-working position |
| Bag material | Laminated film/PE/PP |
| Bag pattern | Stand-up with zipper &stand-up with spout,flat bag, |
| Max filling weight | 10-5000ml |
| Filling accuracy | 0.5-1% |
| Bag size | Type 1 W:100-200mm L:100-350mm |
| Type 2 W:150-260mm L:100-350mm | |
| Type 3 W:200-300mm L:200-450mm | |
| Speed | 10-60bags/min |
| Voltage | 380v 3phase 50/60hz |
| Total power | 5.5KW |
| Compress air | 0.6m3/min |
| Detecting device | 1.No ribbon, alarm and Emergency stop 2.No pouch or pouch open error, no filling, no sealing |
| Safety device |
|
