Application

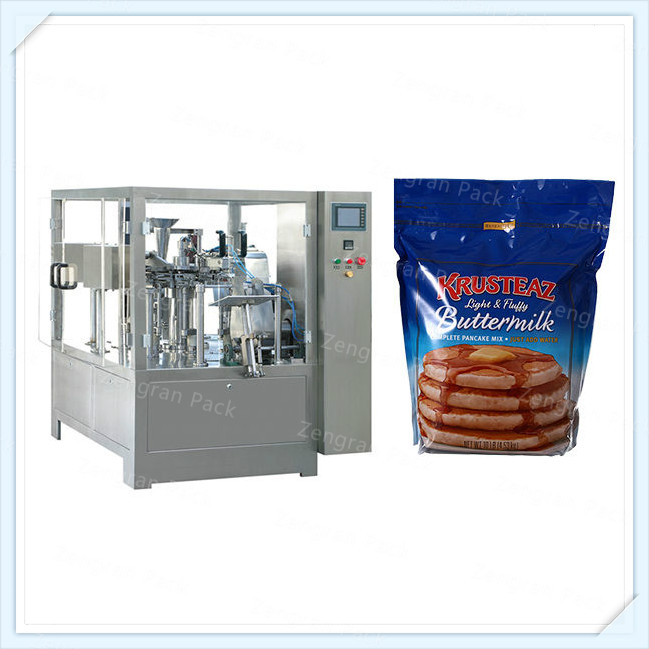

Rotary given-bag packing machine with different dosing(such as multi-head weigher,auger filler liquid filler etc), can be suitable for the automatic packing for granular, powder, liquid paste etc. Different kind of product with the premade stand-up zipper pouch and so on.
Function And Characteristics
Easy To Operate: PLC control, easy operation.
Variable frequency speed regulaation:used the Variable frequency speed regulation device,can be adjusted within the range according to the needs or reality in production.
Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.
The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
Use no oil vacuum pump,avoid polluting the environment in the production.
Open zipper device:thedesign according to the zipper pouch feature,the open zipper rate is high.
Easy to clean: the machine table can be washed.
Safety Device
No pouch or open error, on filling.
No pouch or no filling, no sealing.
No coding ribbon, Emergency stop and alarm.
The safety door open, alarm(option)
The air pressure not enough, alarm.
The sealing temperature anomaly, alarm.
Product Description
| Model | ZR8-200 | ZR8-250 | ZR8-300 |
| Working Position | Eight-Working Position | ||
| Pouch Material | Lamiated Film, PE, PP | ||
| Pouch Pattern | stand-up with zipper | ||
| Speed | 10-50bag/min | 10-40bag/min | 10-40bag/min |
| Gross Weight | 1700KG | 2100KG | 2300KG |
| Pouch Size | L:100-350mm W:100-210mm | L:100-350mm W:150-260mm | L:200-450mm W:200-300mm |
| Voltage | 380V 3phase 50/60HZ | ||
| Power | 3KW | 4KW | 4KW |
| Compress Air | 0.6m3/min (Supply By User) | ||
