Applications

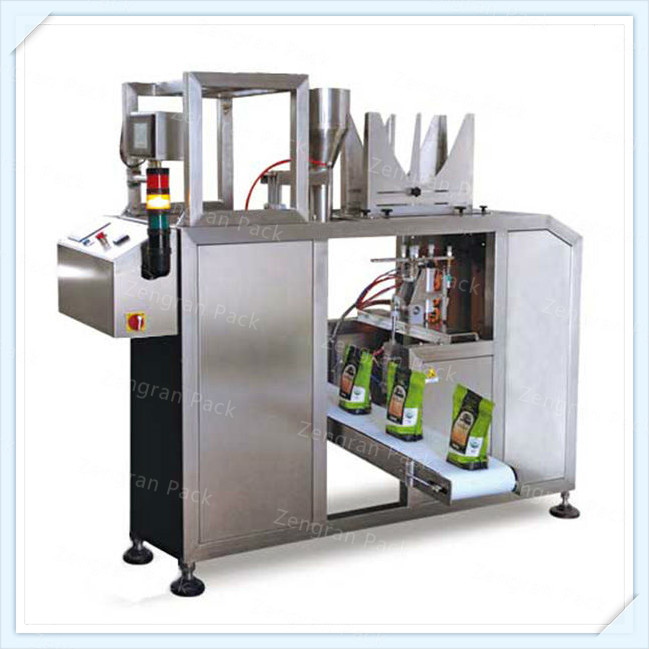

It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags, gusset bags, zipper bags etc. As a cost saving solution, it is ideal for a lot of application such as coffee, frozen foods, cookies, cereals, nuts, flower, candy etc. It can also be interfaced with other equipments for use with turnkey lines.
Features
New generation sanitary design & build
Easy clean and avoid trash accumulated.
Compact footprint & Low Maintenance
Compact single station, pneumatic system used for safety running & low maitenance.
Auto Operation Control
From pouch pick up- open - fill - seal to output which is controlled by PLC
7" User's friendly H.M.I. ensure high efficiency performance.
Easy to Adjust & Operate
Depending on product condition and pouch type, main menu settings can be set on the screen, multiple pouch type can run on the same machine by suction position adjusting.
No Pouch, No Dump
Auto pouch detecting sensor, no pouch no dump ensure material splash down.
Automatic breakdown detection and solution is displayed on the screen clearly.
Various option functions are available as per request, such as auto zip-lock open device/Hot Stamp Printer/ Hopper Shaker/ Product Settler.
Main Parts of Mini Doypack
PLC Control, Touch Screen, Temperature Control, Automatical Pneumatic Components, Gas Processor, Alarm.
Product Name:
Rotary Packing Machine , Filling Machine For Nuts , Flour Paper Bag Packing Machine , Rotary Pouch Filling Machine , Doypack Sealing Machine , Doypack Filling And Sealing Machine , Stand Up Bag Filling Machine , Automatic Stand Up Pouch Packing Machine , Premade Pouch Filling Sealing Machine , Stand Up Pouch Filling Equipment , Stand Up Pouch Filling Machine , Zipper Pouch Machine , Doypack Pouch Filling Machine , Zipper Pouch Sealing Machine , Rotary Bagger
Technical Data
| Model | ZR-300 |
| Premade Pouch Type | standup premade pouch, resealable premade pouch, flat bottom premade pouch, 3 side seal pouch, zipper pouch, zip-lock pouch, top zip pouch, heat seal pouch |
| Premade Pouch Size | 120-300mm(W) *120-350mm(L) |
| Speed | Max. 15 BPM |
| Power Supply | 220V/50HZ or 60HZ Single Phase 1KW |
| Air Pressure | 7.0 CFM@80 PSI |
| Operation Panel | 7 inch user's friendly touch screen |
| Electronic: | Mitsubishi PLC/ Omron Temperature Controller Omron Power Switch / Schneider Breaker |
| Pneumatic: | Pneumatics component Airtac from Taiwan; PIAB Vacuum generator/SMC Vacuum Fliter |
| Options | Auto Zipper open device, SMC Pneumatic Parts, Product Settler, Gasflush and vacuum function, Take Away Conveyors, Filling devices, Ribbon Stamp Printer |
