Applications

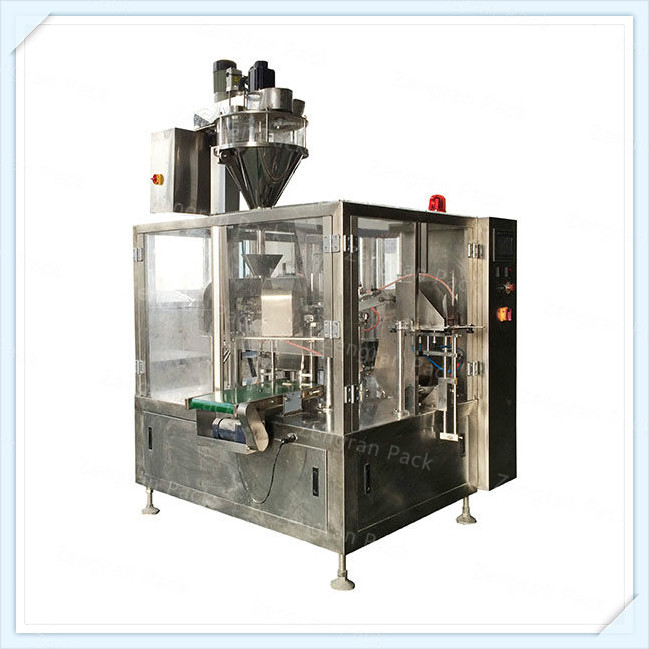

Rotary bag-given packing machine with different dosing(Such as multihead weigher, auger filler, liquid filler etc.), Can be suitable for the automatic packing for granular, powder, liquid, paste etc. Different kinds of rpoduct with the premade stand-up pouch, flat pouch and so on.
Features
Easy To Operate: PLC control, man-machine interface.
Frequency Conversion Speed Regulation: Using frequency conversion adjustment device, the speed can be adjusted at will in the specified range.
Easy to adjust the clip width: Control by motor;Only by a button you can sync control 8 sets of clip.
The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
Open Zipper Mechanism: Design for zipper bag characteristics, high opening rate (invention patent).
Safety Device
No pouch or open error, on filling.
No pouch or no filling, no sealing.
No coding ribbon,Emergency stop and alarm.
The safety door open, alarm(option)
The air pressure not enough, alarm.
The sealing temperature anomaly, alarm.
Technical Data
| Product Name | Powder Filling Sealing Packaging Machinery |
| Pouch Material | Laminated film, PE, PP |
| Pouch pattern | Stand up pouch, Stand up pouch with zipper/spout, Flat pouch |
| Max filling range | Up to 5kg |
| Filling accuracy | +-0.5-1.5% |
| Pouch size | W:100-210mm L:100-350mm(can choose other size) |
| Speed | 10-60bags/min |
| Voltage | 380V3phase 50HZ/60HZ(Customized) |
| Total power | 8.5KW |
| Compress air | 0.6m3/min(supply by user) |
Product Name:
Rotary Packing Machine , Filling Machine For Nuts , Flour Paper Bag Packing Machine , Rotary Pouch Filling Machine , Doypack Sealing Machine , Doypack Filling And Sealing Machine , Stand Up Bag Filling Machine , Automatic Stand Up Pouch Packing Machine , Premade Pouch Filling Sealing Machine , Stand Up Pouch Filling Equipment , Stand Up Pouch Filling Machine , Zipper Pouch Machine , Doypack Pouch Filling Machine , Zipper Pouch Sealing Machine , Rotary Bagger锛Zengran Packaging.
FAQ
Q1: Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
Q2: Do you have quality certificate?
Yes ,we have CE, SGS etc.
Q3: What's the MOQ, delivery time, warranty and installation terms?
MOQ: 1 set
Delivery time: 25 working days. (based on order).
Warranty period: whole machine 1 year. In warranty period, We will send the part free to replace the one that is not broken by purpose.
Installation: Engineers available to service machinery overseas.
