Applications

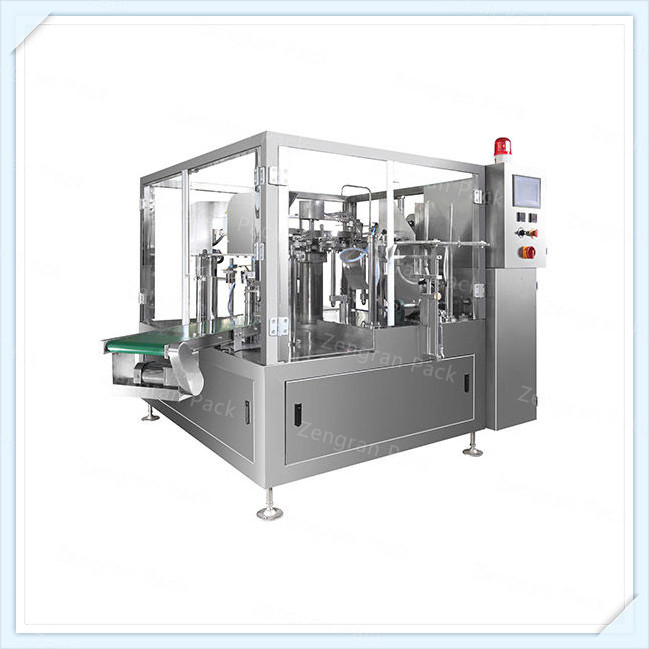

Apply to various kind of pre-made zip bags, max working efficiency reaches 35 bags per minute. The machine can be equipped with different dosing system. Main application: powder, granules products.
8 work stations
1) bag picking;
2) coding;
3) zip unit;
4) bag opening;
5) according to the material;
6) according to the material;
7) sealing and closing zip;
8) tidy to output;
Features
Speed up to 50 bag per minute, 35 bags per minute including open and close the zip.
With open and close of zip function
When change different size bags, can be adjusted with one butoon
Smart detect: bag is not positioned right; the bag is not open completely; material is not fed or not sealed; bags and material saving
World famous brand control system. PLC with touch screen, integrate frequency control system, more stable
Made in good quality and craft, by using 304# stainless steel of 1.5-2mm thickness, firm and durable
Technical Data
Zipper Bag
Working Station: 8 Working-Station
Filling Range: 5-1500g
Pouch Width: 80-240mm(3.15鈥-7.87鈥)
Pouch Length: 100-300mm(3.94鈥-11.8鈥)
Capacity: Up to 50 Bags/Min(Depends on products' natures and filling weight)
Dosing System: Auger Filler, Piston Filler, Volumetric Cup
Power Supply: Per customer specification
Power Consumption: 2KW
Compressed Air: 400 L/Min. Zip Function 580 L/Min.
Machine Dimension: 2000x1200x1400mm (78.7'x47.2'x55.1')
Machine Weight: 1200Kg
Product Name:
Rotary Packing Machine , Filling Machine For Nuts , Flour Paper Bag Packing Machine , Rotary Pouch Filling Machine , Doypack Sealing Machine , Doypack Filling And Sealing Machine , Stand Up Bag Filling Machine , Automatic Stand Up Pouch Packing Machine , Premade Pouch Filling Sealing Machine , Stand Up Pouch Filling Equipment , Stand Up Pouch Filling Machine , Zipper Pouch Machine , Doypack Pouch Filling Machine , Zipper Pouch Sealing Machine , Rotary Bagger锛Anhui Zengran Packaging Technology Co., Ltd.
Service
1) Warranty Time: one year.(Pay an attention: Warranty range don't include damageable parts like heating tube, thermocouple, temperature controller ,photocell and blade) show their photos
2) Quality condition to be responsible and period:
Warranty time: one year. If the machine was broken due to wrongly operating by users, we also provide service for repairing in warranty period. But the buyers need to supply plane ticket and food and accommodation for the technical staff economically and service fee as $100.00/day. We also can provide the new parts as users' requests.
3)installation & direction:
If the clients need our technical staff to install and test(adjust) machine to his company when all the machine equipments are gotten. My factory can do it. the clients need to pay for some expenses(plane ticket, accommodation fee as the clients' standard at the local) and also supply service fee for installing staff when they work in buyers' company as $100.00/day.
