Description

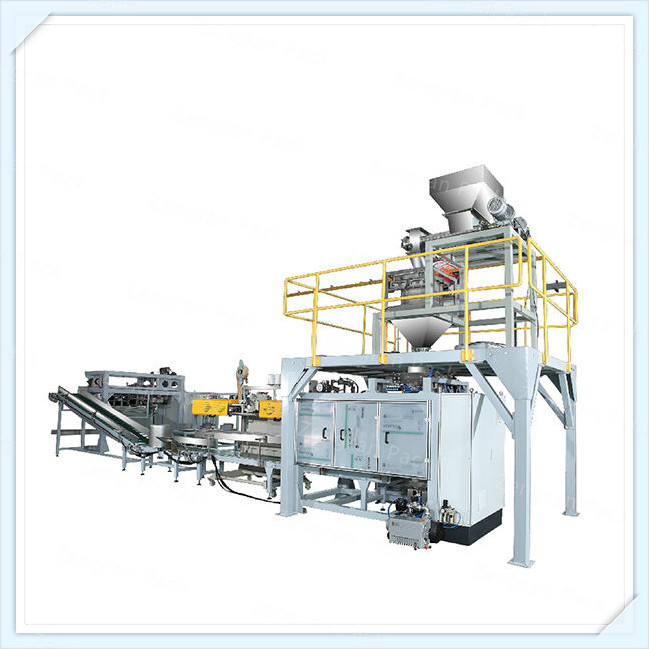

Automatic powder bag feeding packaging machine unit is specially suitable for powdery material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-50kg, the maximum speed can reach 2-6bags/min. High efficiency, advanced design suitable for various requirements.
Application:
The heavy bag packaging machine unit is specially designed for packing material from 10kg to 50kg with pre-made bag. It can automatically realize the function of automatically bag feeding, material weighing, filling, bag clapping, sewing, folding, heat sealing, hemming, labeling and finished products conveying out. Widely used in the area of packing animal food, grains, wheat flour, fertilizer, etc.
Configuration explanation
1 The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
2 Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
3 Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
4 The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Mechanism component
1 Automatic picking-up bag system: Automatically pick up the prepared bag.
2 Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.
3 Hugging bag and conveying mechanism: Hugging bag and conveying bag.
4 Sewing bag: Automatic conveying bag and automatic sewing (sewing bag).
5 Electrical control part: Completely control the whole packaging unit.
6 Automatic weighing machine: Screw weighing machine.
7 Conveyor: Convey material automatically.
Technical parameters
| Packaging material | prefabricated woven bag (lined with PP/PE film) |
| Size of bag making | (700-1100mm)x(480-650mm) L x W |
| Measuring range | 25-50KG |
| Measurement accuracy | 卤50G |
| Packaging speed | 2-6 bags/min (slight variation depending on the packaging material, bag size etc.) |
| Ambient temperature | -10掳C~+45掳C |
| Power | 220V 50HZ 3Kw |
| Air Consumption | 0.5~0.7MPa |
| External dimensions | 5860x2500x4140mm (L x W x H) |
| Weight | 1600kg |
Product Name:
Screw Bagging Machine , Gravimetric Filling , Gravimetric Filling Machine , Auto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Big Bag Handling Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , Flour Bag Packing Machine , Fully Automatic Milk Packing Machine , Chemical Powder Filling Machine , Automatic Flour Packing Machine For Paper Bag
FAQ
Q: First time cooperation, how can i believe your factory will ship the machine to me?
A: We are more thank 20 years experience in packaging industry,and if you worry about that, we can do business by trade assurance. or L/C, etc.
Q: How can i make sure that i get the right good quality machine?
A: Before packing it, we will make the machine test, and make the testing report. and as your request, we can buy the assurance for you to protect your prohibit.
Q: What after sales service you can provide?
A: As request, we can send our professional engineers to your factory to set up the machine and training your workers , only need you to bear relate charges. and any question you meet when using, you can contact me at any time by Skype or cellphone or email, we will respond you within 12 hours.
Q: How to get the detailed information and price and drawing?
A: Send us inquiry below and press "send " with the detailed packing request information as below:
1) product name 2) packing weight 3) product bulk density 4) product material and bag picture 5) packing speed and packing accurate request.
