Description

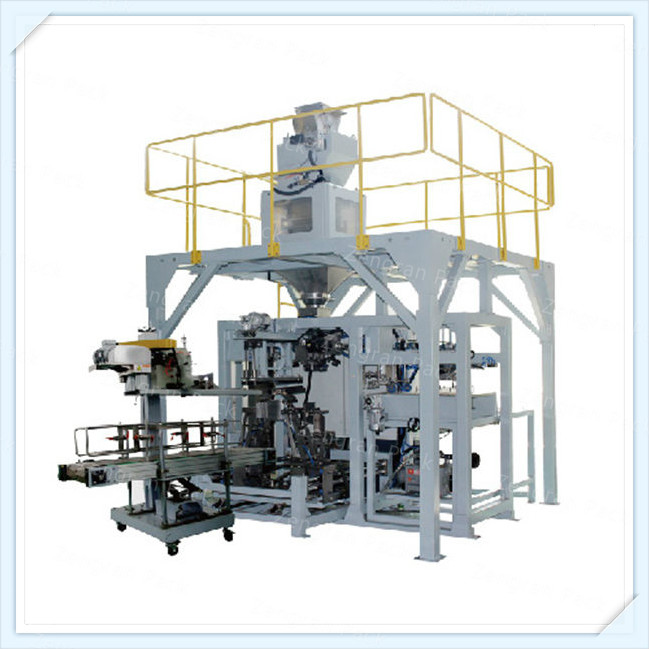

Automatic powder bag feeding packaging machine unit is specially suitable for powdery material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-25kg, the maximum speed can reach 2-6bags/min. High efficiency, advanced design suitable for various requirements.
fully automatic 10kg-25kg Animal feeds/Rice/Pet food packaging machine
Brief introduction of equipment:
This unit has the functions of automatic bag supply, bag feeding, filling, bag delivery, sealing etc. It can work in linkage with the equipment for various kinds of powdery materials to achieve unmanned production operation of large-sized package.
Configuration explanation
1 The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
2 Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
3 Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
4 The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Mechanism component
1 Automatic picking-up bag system: Automatically pick up the prepared bag.
2 Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.
3 Hugging bag and conveying mechanism: Hugging bag and conveying bag.
4 Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)
5 Electrical control part: Completely control the whole packaging unit.
6 Automatic weighing machine: screw weighing machine.
7 Conveyor: Convey material automatically.
Technical parameters
| Packaging material | prefabricated woven bag (lined with PP/PE film) |
| Size of bag making | (630-1100mm)x(350-650mm) L x W |
| Measuring range | 10-50KG |
| Measurement accuracy | 卤50G |
| Packaging speed | 2-6 bags/min (slight variation depending on the packaging material, bag size etc.) |
| Ambient temperature | -10掳C~+45掳C |
| Power | 220V 50HZ 3Kw |
| Air Consumption | 0.5~0.7MPa |
| External dimensions | 5860x2500x4140mm (L x W x H) |
| Weight | 1600kg |
Product Name:
Screw Bagging Machine , Gravimetric Filling , Gravimetric Filling Machine , Auto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Big Bag Handling Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , Flour Bag Packing Machine , Fully Automatic Milk Packing Machine , Chemical Powder Filling Machine , Automatic Flour Packing Machine For Paper Bag,Zengran Pack .
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 120 US dollars daily service fees and travel expenses.
