Application:
Flour, Grain, Rice, Spices, Other Foods, Cattle Feed, Bird Seed, Feed Ingredients, Fish Feed, Sweet Feed, Other Feed, Limestone, Litter, Ice-Melting Salt, Other Minerals, Alfalfa, Corn Seed, Grass Seed, Sorghum Seed, Soybean Seed, Sunflower Seed, Other Seed and Crops, Fertilizers, Plastic Pellets, Other Chemicals.
Functions:

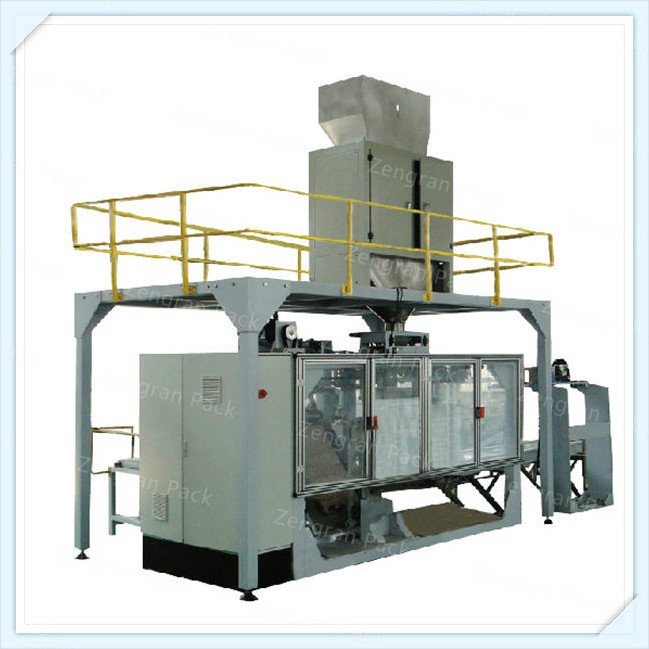

This series bag placer is designed for bagging all types of free flowing materials into plastic, paper or poly-woven open-mouth bags. It can handle pillow-type or side gusseted bags of various sizes at capacities of up to 12 bags per minute. It combines with sewing and sealing machine creating a complete filling, sealing to palletizing line.
Configuration explanation
1 The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
2 Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
3 Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
4 The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Mechanism component
1 Automatic picking-up bag system: Automatically pick up the prepared bag.
2 Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.
3 Hugging bag and conveying mechanism: Hugging bag and conveying bag.
4 Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)
5 Electrical control part: Completely control the whole packaging unit.
6 Automatic weighing machine: ZRCFX-25 weighing machine
7 Conveyor: Convey material automatically
Technical Data
| SPECIFICATIONS | ||
| Technical parameters | Model | GFCK50 |
| Hopper capacity | 55L/110L | |
| Packing range | 20-50KG | |
| Packing accuracy | 鈮ぢ0.2% | |
| Packing speed | 580 bags/hour | |
| Bag sizes | L600-1050;W420-520;bottom:75mm | |
| Air consumption | 750cm鲁/min | |
| Voltage | AC380V 50Hz | |
| Power | 3KW | |
| Machine weight | 1300KG | |
| Applications | Food: sugar, rice, grain. Feed and seed: animal feed, seeds, etc. Growing media: compost, peat moss, soils, mulch, etc. Forestry: bark, wood pellets, paper pellets, etc. Chemical: cat litter, fertilizer, plastic pellets, etc. Mineral: coal, concrete mix, gravel, salt, sand, etc. | |
Product Name:
Auto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , 5kg-10kg cat litter packing machine , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Cannabis Bagging Machine , Sunflower Seed Packing Machine , Big Bag Handling Equipment , Sugar Hopper Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Salt Packing Machine , Sugar Packing Machine Video , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Sandbag Filling , Sandbag Filling Machine , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , 25kg Sugar Bagging , 25kg Sugar Bagging Machine
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 120 US dollars daily service fees and travel expenses.
