OLUTIONS FOR
Flour, Grain, Rice, Spices, Other Foods, Cattle Feed, Bird Seed, Feed Ingredients, Fish Feed, Sweet Feed, Other Feed, Limestone, Litter, Ice-Melting Salt, Other Minerals, Alfalfa, Corn Seed, Grass Seed, Sorghum Seed, Soybean Seed, Sunflower Seed, Other Seed and Crops, Fertilizers, Plastic Pellets, Other Chemicals

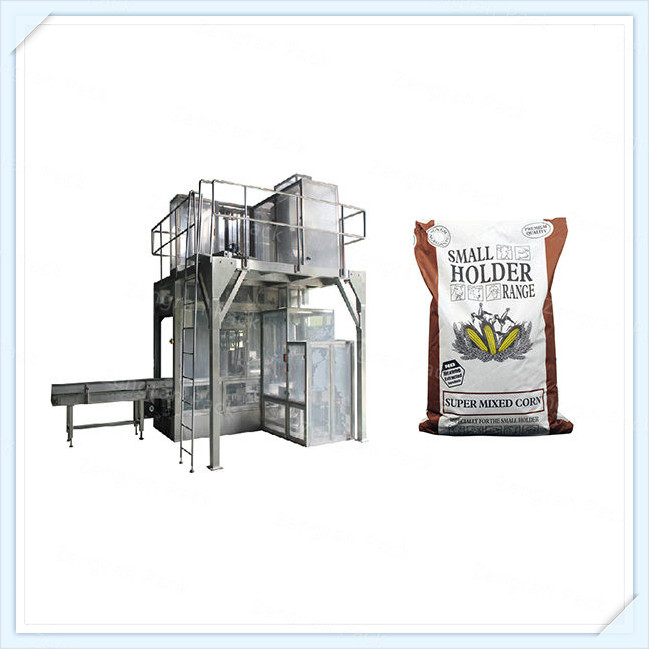

This packing machine is developed for granule material packing such as chemical, feed, grain and seeds field .The unit is provided with the function of automatic bag-fetching , automatic filling , automatic bag-conveying and sealing . It can be linked with all kinds of granule material production equipment to work to achieve unattended production of large-sized packaging operations. LCD touch screen control . Human-computer interface more favorable. Automatic fault diagnosis .Safety shutdown protection.Quick adjustment and easy maintenance.
Functionality
Individual bag pick-up and opening
Empty bag (with or without gusset) transfer to filling mouth
Bag hermetic fastening on filling mouth
Bag filling (product discharge from scale or dozer) and vibrating
Closing system: Thermo-sealing and/or multiple sewing, fold and glued etc.
Bag Types
Pre-made open mouth bag with gussets, standard pillow bag or block/cross bottom bag, with or without handle.
Bag Materials
Laminated polywoven, paper bags, PP, PE etc.
Technical Data
| Weighing range | 5 to 50kg (10lb to 110lb) |
| Bag size | L630-830mm x W 350-450mm; L800-1000 x W450-550mm; L 900-1100mm x W 550-650mm (By option) |
| Output | 3 to 15 bags per min (Depending on the product and format.) |
| Ambient temp. | -10掳C to + 45掳C |
| Electrical | 380V/50Hz, 3phase or customized per specification |
| Power | 3KW |
| Air Pressure & Consumption | 0.7Mpa, 0.6 M3锛弇in |
Product Name:
Zengran Packaging锛孉uto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , 5kg-10kg cat litter packing machine , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Cannabis Bagging Machine , Sunflower Seed Packing Machine , Big Bag Handling Equipment , Sugar Hopper Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Salt Packing Machine , Sugar Packing Machine Video , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Sandbag Filling , Sandbag Filling Machine , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , 25kg Sugar Bagging , 25kg Sugar Bagging Machine
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 120 US dollars daily service fees and travel expenses.
