路Application:
1. Powders like milk powder, protein powder, rice flour, coffee powder, seasoning, toner, etc.
2. Granules like forage, coffee beans, etc.
路Brief introduction:

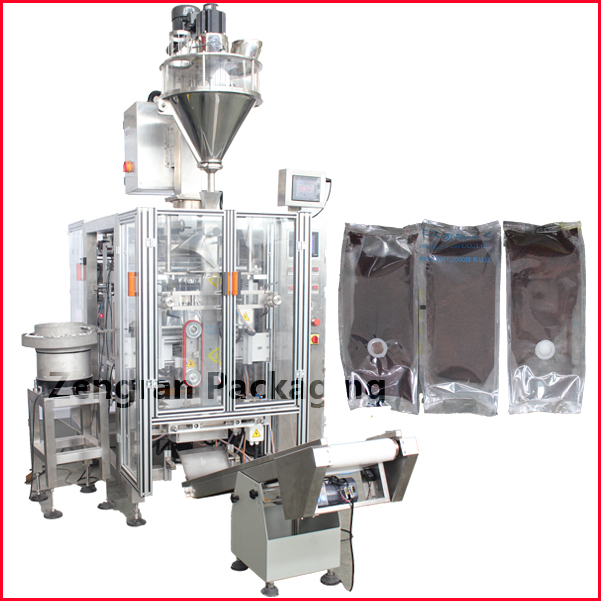

1. This machine integrates the functions of bag making, filling, sealing, printing, punching and counting, has automatic offset correction function, both the transverse sealing and film pull mechanisms adopt servo motor for transmission so as to guarantee high efficiency of the machine.
2. The side seal former is an independent mechanism, and has an independent offset correction system in the forming and side sealing process, which guarantees the stability of its side sealing and forming mechanism.
3. Control components all adopt well-known international brands with reliable performance; the operator can perform parameter operation on the touch screen.
4. Can make multiple types of bag like four-side-sealed box bag, gusset bag, pillow bag, etc.
5. Can be equipped with automatic welding valve device, and can make the type of bag that needs to be added with vent valve according to material requirements.
Product Name:
Vertical Form Fill And Seal Machines , Vffs Parts , Single Serve Packaging Machine , Vertical Form Fill , Automatic Packing And Sealing Machine , Laminated Packaging Machine , Ultima Vertical Form Fill Seal Machine , Weight Packaging Machine , Gusset Bag Packaging Machine, Packaging Machine Distributor , 500 Gram Packing Machine, , Plastic Pouch Packing Machine ,Paper Filling Machine , Small Weighing And Packing Machine , Vffs Baggers , Pouchfill Packaging , Full Automatic Packaging Machine , Pouch Bag Packaging Machine , Vertical Fill And Seal Machines , Automatic Bag Filling And Sealing Machine , Chips Pouch Packing Machine , Vertical Form Fill Seal Machine Manufacturers , Nitrogen Bagging System , Vffs Machine Manufacturers , Automatic Atta Packing Machine Manufacturers , Form Fill And Seal Plastic,Anhui Zengran Packaging Technology Co., Ltd.
..
路Technical parameters:
Model | Machine dimensions (L脳W脳H) | Bag type | Range of Bag width | Packing speed | Reel ID | Reel OD | Compressed air requirement | Power supply |
VFS5000YA5 | 2525X1525X1600mm | Pillow bag, box bag, die cut bag | Front face width: 50~190mm | 20~40 (bags/min) | 桅75mm | 桅400mm | 0.6MPa 350L/min | 380V 50Hz 8kw |
Side face width: 35~90mm | ||||||||
Width of side seal: 5~8mm | ||||||||
Bag length range: 100~420mm | ||||||||
Max. width of packaging material: 520mm |
