SOLUTIONS FOR
Flour, Grain, Rice, Spices, Other Foods, Cattle Feed, Bird Seed, Feed Ingredients, Fish Feed, Sweet Feed, Other Feed, Limestone, Litter, Ice-Melting Salt, Other Minerals, Alfalfa, Corn Seed, Grass Seed, Sorghum Seed, Soybean Seed, Sunflower Seed, Other Seed and Crops, Fertilizers, Plastic Pellets, Other Chemicals powders and granular materials (food, feed, seed, minerals, chemicals, etc.). They can also handle several kinds of open-mouth bags, including paper bags, polywoven bags, polyethylene bags, etc.

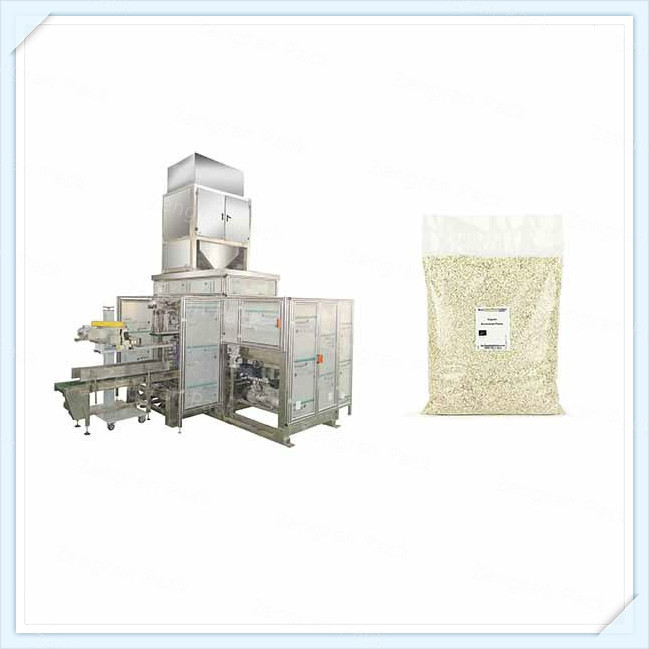

Automatic Plastic Granular Bagging Machine is specially designed for plastic granular automatic material measuring, bag feeding, material filling, bag conveying sewing, bag mouth folding labeling and finished products take-off. Mostly the production line shall connect with the palletizing system for whole packaging line. Now the Tech Packaging machine has been adopted by WENGFU GROUP / WINTRUE GROUP / SINOPEC GROUP / KINGENTA GROUP / SINOCHEM GROUP Etc.
Features
1, The whole line is customized according to customer鈥檚 specific needs and workroom present situation to make sure all the machine suit well for the customer.
2, The machine unit line adopts famous brand electrical parts like Mettler Toledo load cell / Banner Vacuum Generator / SMC Valve / Siemens PLC & Touch Screen etc. To ensure good machine performance for customer.
3, The main packing machine shall be equipped with tempered glass and the robot hand shall be equipped with safety guard to ensure the worker鈥檚 safety.
4, The whole machine line shall build up a controlling cabinet for the connecting of all the machine lines.
5, The whole machine line just require one to two person for operating & normal checking which greatly save the labor cost for the customer and increase the production efficiency.
Technical Data
| MODEL | ZRCK-25K | |
| Packaging | Object | granular material |
| Material | 1- paper bag | |
| 2- woven bag(lined with PP/PE film) | ||
| 3- plastic bag(film thickness 鈮0.2mm | ||
| Dimension | (700-850)*(400-500)mm (L*W) | |
| Weight | granular material 10- 25kg | |
| Seal Type | Woven bag | lura folding/seaming |
| Kraft paper bag | sealing/seaming | |
| Composite film bag | sealing | |
| Machine | Speed | 5 - 12 bags/min (adjustable) |
| Measurement Accuracy | 卤 50g | |
| Air Supply | 0.5 - 0.7 Mpa | |
| Power | 4.0kw 380v 卤10% 50Hz | |
| Machine Package | Dimension | 4300*3500*3700mm |
| Weight | 1400kg | |
Product Name:
Auto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , 5kg-10kg cat litter packing machine , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Cannabis Bagging Machine , Sunflower Seed Packing Machine , Big Bag Handling Equipment , Sugar Hopper Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Salt Packing Machine , Sugar Packing Machine Video , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Sandbag Filling , Sandbag Filling Machine , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , 25kg Sugar Bagging , 25kg Sugar Bagging Machine
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 120 US dollars daily service fees and travel expenses.
