Device Profile

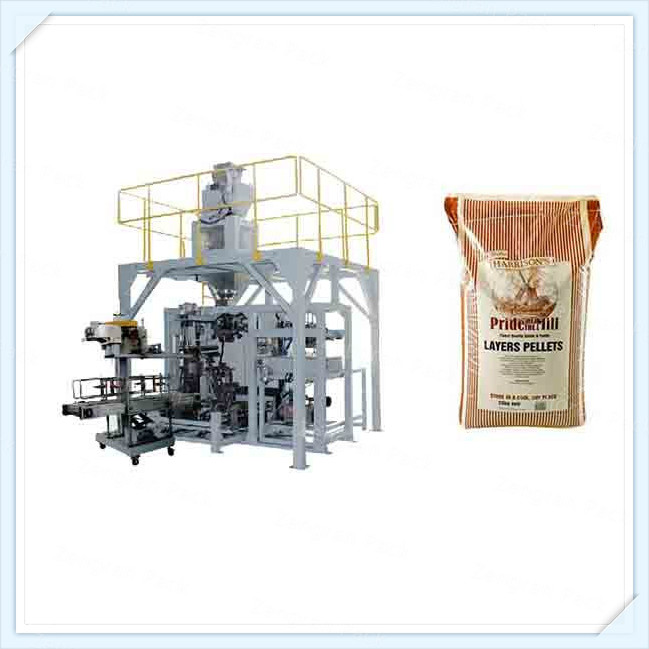

Automatic Granule Open Mouth Bagging & Bag Filling Scales is developed for granule. material packing in allusion to chemical, feed, grain and seeds field etc.
SOLUTIONS FOR
Flour, Grain, Rice, Spices, Other Foods, Cattle Feed, Bird Seed, Feed Ingredients, Fish Feed, Sweet Feed, Other Feed, Limestone, Litter, Ice-Melting Salt, Other Minerals, Alfalfa, Corn Seed, Grass Seed, Sorghum Seed, Soybean Seed, Sunflower Seed, Other Seed and Crops, Fertilizers, Plastic Pellets, Other Chemicals.
Functional Features
1.Provided with the functions of automatic bag-fetching, automatic filling, automatic bag-conveying and sealing.
2.Linked with all kinds of powder materials production equipment to work to achieve unattended production of
large-sized packaging operations.
3.LCD touch screen control, human-computer interface more favorable.
4.Automatic fault diagnosis, safety shutdown protection, quick adjustment and easy maintenance.
Packing materials
Woven Bags (lined with PP/PE film)
Kraft paper bags
Plastic composite film (thickness greater than0.18mm)
Main Technical Parameters
| Size of bag making | (700-1100mm)x(480-650mm) (L*W) |
| Measuring range | granule material 25-50kg/bag |
| Measurement accuracy | 卤50g |
| Packaging speed | 5-15 packs/min (difference according to the packing materials, bag size etc) |
| Ambient temperature | -10掳C~+45掳C |
| Power supply | 6.5 Kw, 380V卤10%, 50Hz |
| Air Consumption | compressed air 0.5-0.7Mpa |
| External dimensions | 5700 x 2800 x 2100mm (L* W * H) |
| Weight | 3000kg |
Sealing
Woven bag: lura folding/seaming
Kraft paper bags: sealing/seaming
Plastic composite film bag: sealing
Product Name:
Zengran Packaging锛孉uto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , 5kg-10kg cat litter packing machine , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Cannabis Bagging Machine , Sunflower Seed Packing Machine , Big Bag Handling Equipment , Sugar Hopper Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Salt Packing Machine , Sugar Packing Machine Video , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Sandbag Filling , Sandbag Filling Machine , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , 25kg Sugar Bagging , 25kg Sugar Bagging Machine
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 120 US dollars daily service fees and travel expenses.
