Application:

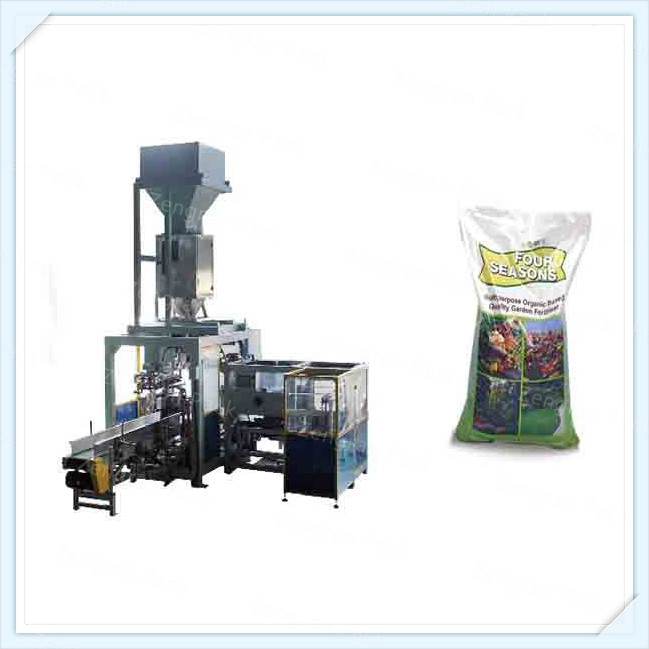

It is a reliable and heavy duty automatic packaging line for handling bulk granule products, salt, sugar, rice, seeds, pet foods, fertilizers. The product is conveyed to the weighing container by its own weight, the main feed and fine feed can be adjusted using a cut-off gate with a variable opening that, depending on production capacity, it's driven pneumatically.
Functionality
Individual bag pick-up and opening
Empty bag (with or without gusset) transfer to filling mouth
Bag hermetic fastening on filling mouth
Bag filling (product discharge from scale or dozer) and vibrating
Closing system: Thermo-sealing and/or multiple sewing, fold and glued etc.
Bag Types
Pre-made open mouth bag with gussets, standard pillow bag or block/cross bottom bag, with or without handle.
Bag Materials
Laminated polywoven, paper bags, PP, PE etc.
Technical Data
| Weighing range | 5 to 50kg (10lb to 110lb) |
| Bag size | L630-830mm x W 350-450mm; L800-1000 x W450-550mm; L 900-1100mm x W 550-650mm (By option) |
| Output | 3 to 16 bags per min (Depending on the product and format) |
| Ambient temp. | -10掳C to + 45掳C |
| Electrical | 380V/50Hz, 3phase or customized per specification |
| Power | 3KW |
| Air Pressure & Consumption | 0.7Mpa, 0.6 M3锛弇in |
Working Principle:
Material is fed into surge bin through customer's hopper. The homogenizing system in surge bin
agitates the material to vent the gas contained in material out of the bin to prevent bridge forming
during packing process. Material is then filled into bags through double heads vibration scale or servo type scale which is controlled by frequency convertor. When reaching the target value, feeding section stops and the filled bag is
ready to be manually or automatically discharged. The machine is ready for a new filling circle.
Our packaging machine use the PLC system of 10" full color touch screen panel, dual English/Chinese interface.
The machine installation 3pcs of high precision load cell provide high weighing accuracy, also the bag clamping
device installation 2pcs of cylinder and 2pcs of sensor switch, bag clamped more tighter, bag giving more safe.
The bagging machine working with the automatic bag sewing machine with automatic start/off and single needle
double thread automatic cutter, the sewing data can be display and record.
Product Name:
Auto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , 5kg-10kg cat litter packing machine , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Cannabis Bagging Machine , Sunflower Seed Packing Machine , Big Bag Handling Equipment , Sugar Hopper Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Salt Packing Machine , Sugar Packing Machine Video , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Sandbag Filling , Sandbag Filling Machine , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , 25kg Sugar Bagging , 25kg Sugar Bagging Machine
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 120 US dollars daily service fees and travel expenses.
