SOLUTIONS FOR
Flour, Grain, Rice, Spices, Other Foods, Cattle Feed, Bird Seed, Feed Ingredients, Fish Feed, Sweet Feed, Other Feed, Limestone, Litter, Ice-Melting Salt, Other Minerals, Alfalfa, Corn Seed, Grass Seed, Sorghum Seed, Soybean Seed, Sunflower Seed, Other Seed and Crops, Fertilizers, Plastic Pellets, Other Chemicals.

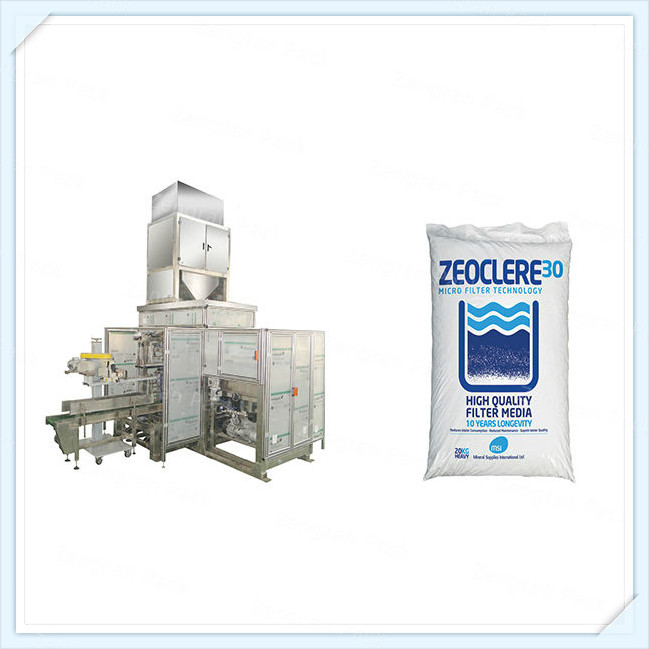

Functionality
1 Automatic picking-up bag system: Automatically pick up the prepared bag.
2 Opening bag, clamping, holding bag mechanism: Automatically open, hold and fix bag.
3 Hugging bag and conveying mechanism: Hugging bag and conveying bag.
4 Sewing bag: Automatic conveying bag and automatic sewing (sewing bag)
5 Electrical control part: Completely control the whole packaging unit.
6 Automatic weighing machine: screw weighing machine
7 Conveyor: Convey material automatically
Configuration explanation
1 The machine is easy operated and stable because of adopting Siemens PLC and 10 inch color touch screen in control part.
2 Pneumatic part adopts Festo solenoid, oil- water separator, and cylinder.
3 Vacuum system adopts Festo solenoid, filter, and digital vacuum pressure switch.
4 The magnetic switch and photoelectrical switch are provided in every movement mechanism, which is safe and reliable.
Bag Types
Pre-made open mouth bag with gussets, standard pillow bag or block/cross bottom bag, with or without handle.
Bag Materials
Laminated polywoven, paper bags, PP, PE etc.
Technical Data
| MODEL | ZRCK-25K | |
| Packaging | Object | granular material |
| Material | 1- paper bag | |
| 2- woven bag(lined with PP/PE film) | ||
| 3- plastic bag(film thickness 鈮0.2mm | ||
| Dimension | (700-850)*(400-500) (L*W) | |
| Weight | granular material 10- 25kg | |
| Seal Type | Woven bag | lura folding/seaming |
| Kraft paper bag | sealing/seaming | |
| Composite film bag | sealing | |
| Machine | Speed | 5 - 12 bags/min (adjustable) |
| Measurement Accuracy | 卤 50g | |
| Air Supply | 0.5 - 0.7 Mpa | |
| Power | 4.0kw 380v 卤 10% 50Hz | |
| Machine Package | Dimension | 4300*3500*3700mm |
| Weight | 1400kg | |
Product Name:
Zengran Packaging锛孉uto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , 5kg-10kg cat litter packing machine , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Cannabis Bagging Machine , Sunflower Seed Packing Machine , Big Bag Handling Equipment , Sugar Hopper Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Salt Packing Machine , Sugar Packing Machine Video , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Sandbag Filling , Sandbag Filling Machine , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , 25kg Sugar Bagging , 25kg Sugar Bagging Machine
After sales service
1.Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 120 US dollars daily service fees and travel expenses.
