FOOTPRINT
Length: 4300mm
Width: 3500mm
Height: 3700mm
BAG MATERIALS
Laminated polywoven, paper and polyethylene
Flowing Process:
Bag placing鈫 Automatic filling鈫 Automatic weighing鈫 Automatic bag conveyer鈫 Automatic bag top sewing / sealing
FEATURES
1. Automatic quantity-fixed balance
2. Automatic bag-supply section
3. Optional section such as air compressor
4. Automatic bag-clamped section
5. Automatic belt conveyor
6. Automatic sewing / sealing machine
7. Automatic bag-backwards section
8. Electrical instrument control cabinet
Characteristics:
Picking bag, feeding bag, filling material, weighing in , sewing / sealing bag, bag-backwards and bag transmission are finished completely automatically.
Adopting PLC to guarantee the reliability of control
Adopting high-precision transducer and intelligent instrument to guarantee the accuracy and speed of weight
Adopting touch screen with trouble display and help system for easy operation.
Adopting imported pneumatic components features compact structure, reliable performance and convenient maintenance.
The sewing / sealing machine is an imported machine.
Applications
Rice, Wheat, Pulses, Granules, Powder, Chemicals etc.

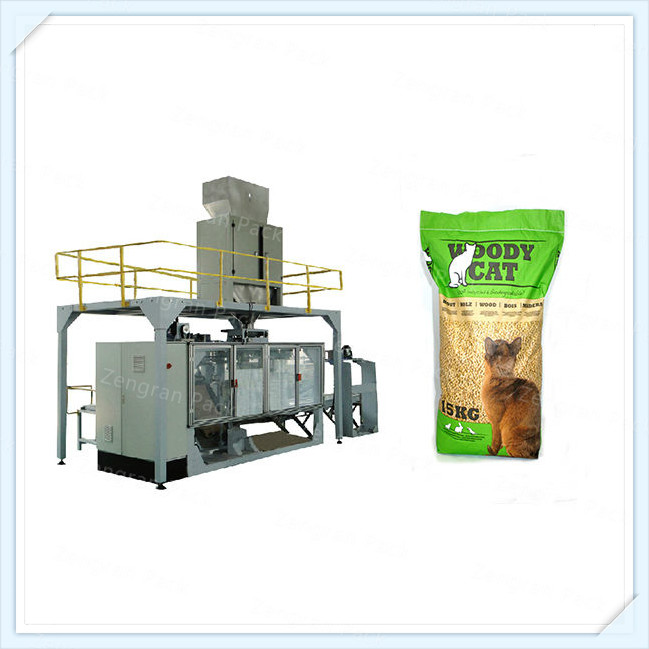

It is Completed Automatic Packing Machine applicable for packing powder in industries such as chemistry, fertilizer, grain, food, feed, medicine, construction materials industry, etc. fully automated bagging machine for urea.
Technical Data
| Weighing range | 5 to 50kg (10lb to 110lb) |
| Bag size | L630-830mm x W 350-450mm; L800-1000 x W450-550mm; L 900-1100mm x W 550-650mm (By option) |
| Output | 3 to 16 bags per min (Depending on the product and format.) |
| Ambient temp. | -10掳C to + 45掳C |
| Electrical | 380V/50Hz, 3phase or customized per specification |
| Power | 3KW |
| Air Pressure & Consumption | 0.7Mpa, 0.6 M3锛弇in |
Product Name:
Auto Baggers , Bagging Plant For Sale , Bagging Machine For Sale , Chemical Packaging Equipment , 5kg-10kg cat litter packing machine , Fertilizer Bagging Equipment For Sale , Open Mouth Bagger For Sale , Auto Bagger For Sale , Paper Bag Packing Machine , Automatic Bagging Equipment , Bagging Station , Cannabis Bagging Machine , Sunflower Seed Packing Machine , Big Bag Handling Equipment , Sugar Hopper Equipment , Packing Conveyor Machine , Packaging Machinery Manufacturers Europe , Packaging Machine Drawing , Salt Packing Machine , Sugar Packing Machine Video , Automatic Bagging Machine , Compost Bagger For Sale , Automatic Packing Machine For Sale , Soil Bagging Machine , Open Mouth Bagging Equipment , Automatic Packaging Machine , Open Mouth Bag Packaging Machine , Bagging Machine For Open Mouth Bag , Intelligent Packaging Machine , Bagging Equipment , Sandbag Filling , Sandbag Filling Machine , Animal Feed Bagging , Animal Feed Bagging Machine , Automated Packaging Systems , 25kg Sugar Bagging , 25kg Sugar Bagging Machine
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 100 US dollars daily service fees and travel expenses.
