Description:

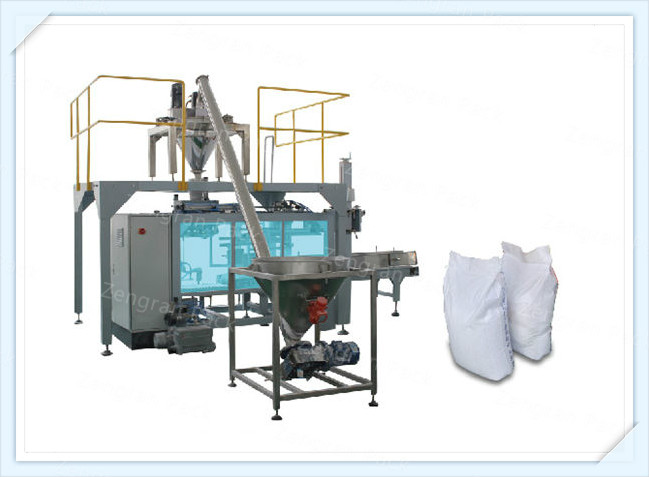

Automatic powder bag feeding packaging machine unit is specially suitable for powdery material, the packaging material is paper bag, PE bag, woven bag, the packing range is 10-25kg, the maximum speed can reach 3-6bags/min. High efficiency, advanced design suitable for various requirements.
Features:
10-25kg packaging, with a capacity of 1000 bags/h(according to different bag, raw material)
It's suitable for paper bag, PE bag, woven bag. Paper bag & woven bag can adopts sewing sealing (DS-8C). PE bag adopts hot sealing (HS-22D).(Final decision according to customer's requirements.)
Empty bag putting process detected by detector's dual-confirmation. Filling process stopping automatically when leakage appears or no bag putting on.
Automatic bag feeder consists of horizontal 3 units, each unit can store 100 bags(PE bag), suitable for high speed production.
Full automatic running.
Additional middle damper in auger hopper (optional), air chute (optional), to prevent product splash, promote the dedusting result.
Vibration gas exhaustion device for non pinhole bag is optional, to eliminate the rest air in the product.
Safety & Control Device:
Bag shortage detector鈥攕uch as 2 units without bag, then indicator light & buzzer warning--it's time to supply bags. When 3 units none bag鈥攎achine stop automatically.
Fault: bag mouth opening detector鈥攂ag has been chucked auger head incorrectly, offload the bag, stop the dosing machine by signal. After this problem has been solved, restart the filling process.
Stitching broken detector鈥攚hen sewing machine stitching broken, indicator light on, buzzer sounds, whole machine stopped automatically.
String shortage detector鈥攊ndicator lights on while sewing string shortage. Buzzer sounds鈥攊t's time to supply sewing string.
Bag hot seal machine without automatic temperature controller or heating stripe broken detector.
Technical parameters:
| Packaging material | prefabricated woven bag (lined with PP/PE film) |
| Size of bag making | (900-1100mm)x(440-550mm) LXW |
| Packaging speed | 3-6 bags/min (slight variation depending on the packaging material, bag size etc.) |
| Ambient temperature | -10掳C~+45掳C |
| Power | 380V 50HZ 3Kw |
| Air Consumption | 0.5~0.7MPa |
| External dimensions | 5860x2500x4140mm (L x W x H) |
| Weight | 1600kg |
Product Name:
Bagging Device , Bag Filling Station , Bag Packing Machine Factory , Bag Filling Machine Manufacturers , Gravimetric Filling , Gravimetric Filling Machine , Bag Filler And Sealer , Bag Filling Hopper , Packer Machine , Automated Bag Packaging Machinery , Powder Handling Bags , Material Packing Machine , Bag Packaging Equipment , 50 Kg Bagging Machine , Sack Filling Machine , Silo Bag Filling Machine , Industrial Bagging Equipment , Bag Filling Scales , Animal Feed Packaging Machine , Detergent Packing Machine Price , Bag Packing Machine Price , Automated Bagging Line , Robot Packing Machine , Auto Bagging System , Feed Bagging System , Big Bag Packaging,,Zengran Pack .
After sales service
1. Providing professional installation instructions and video of troubleshoot.
2. Providing machine control software updates and operation teaching in our factory.
3. Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4. Engineers available to service the machinery overseas, buyers pay 100 US dollars daily service fees and travel expenses.
