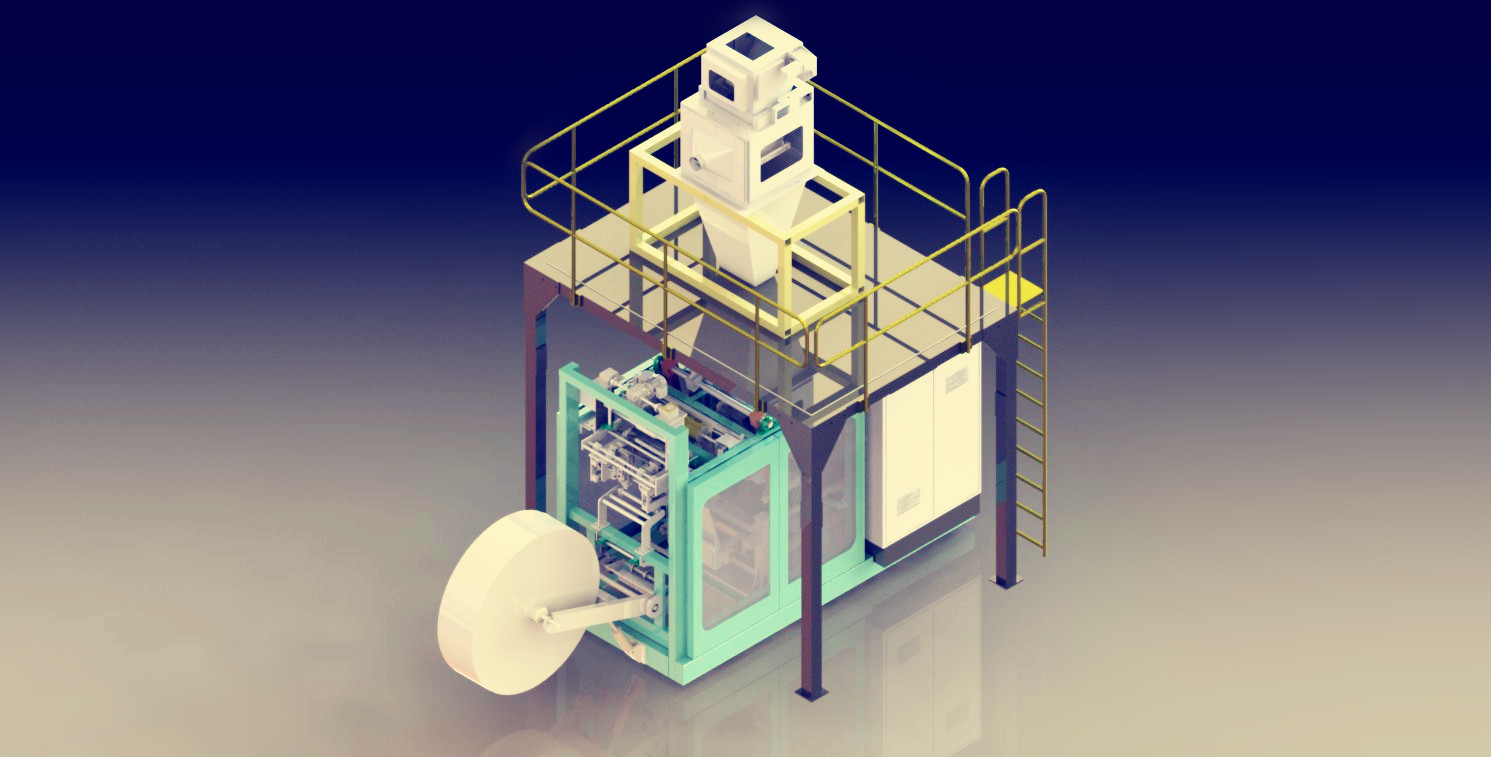

Equipment description:
Structural characteristics
It has high safety, the full closed structure, and interlocking device, working process if enter the equipment, the equipment will automatically stop and alarm for manual confirmation reset device to start again;
Some high adaptability to different packing bags, bag length and width, as long as the simple adjustment (including packing bag length directly on the touch screen can be set, can be changed), in order to adapt to the different material bulk density changes and the total weight of the same single bag;
Drive mechanism
Is mainly to provide the installation platform and hand on the beat transformation of each gripper position, deceleration motor through the driving arm, the connecting rod drives the driving arm in reciprocating swing, and drive the whole mechanism before and after the two station network of complex motion.
Bag gripper
The utility model is mainly composed of a well made bag clip which is sent to the opening mouth opening mechanism
Technical parameters:
Design speed: 20bag/min

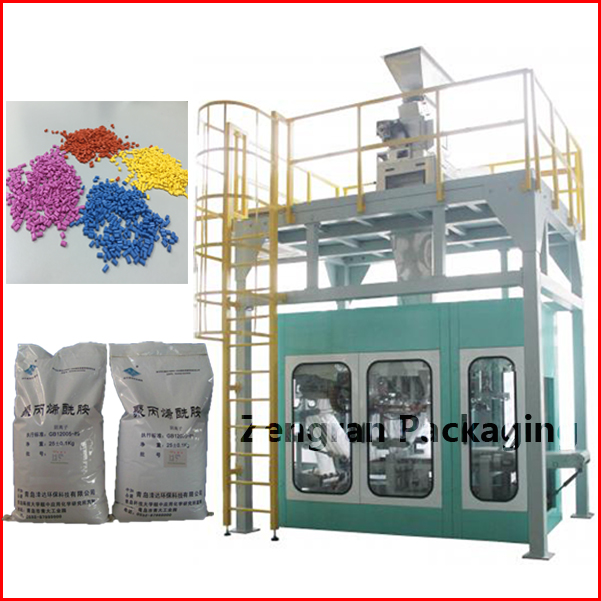

Packaging specifications: 25kg/bag, such as polypropylene particles (PP particles)
Film volume requirements: M type PE packaging film bag volume, melt index 0.2, film thickness of 140-200um + + 4%, fold depth of 80mm + 3mm,

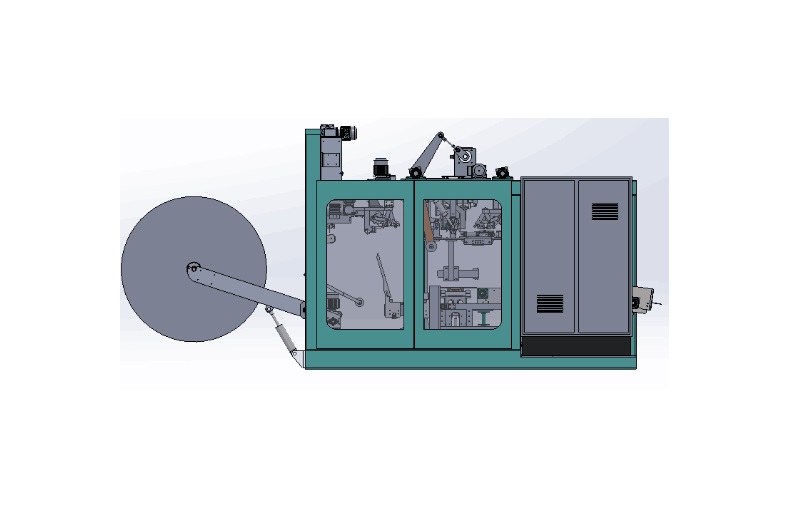

package size (650-950) x400x180 mm, film roll diameter 1500mm, the film inside the barrel 150mm+/-5mm
Operating voltage: 380V 50Hz
Control voltage: 24V DC
Environmental requirements: temperature 5-40 degrees, humidity maximum 80%
Compressed air: air consumption 3M 6kgf fand /min, pressure
Power: about 10KW
Noise: <80dB, far from the machine 1m, 1.6m height measurement
