Applications:
The packaging machine can be vacuumed with different weight and filling system for various granule and powder like rice, beans, pet food, ground coffee, milk powder and food additive etc.
Features:
1-The machine is for film bag with sexangle, could be realized atuomatically supply, weighing, bag making, filling, shaping, vacuuming, sealing, cutting and conveyor;
2.mostly use for bulk production in order to keep the packing beauty and good sealing
3.quite low speed with competitive price and easy operation

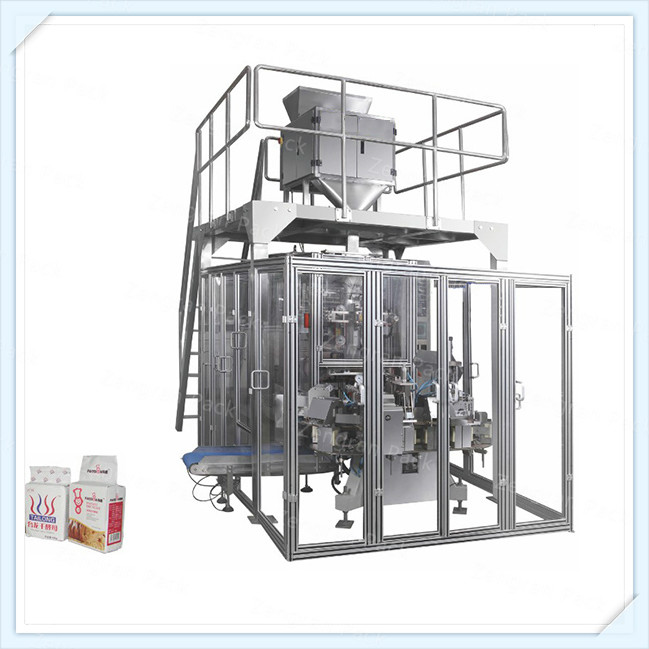

Packaging Machine:
1, Machine fully controlled by Siemens or Omron PLC & Touch-Screen;
2, Minute capacity can automatically display on Touch screen;
3, Film transport system motion drived by Panasonic;
4, Safe quick change of tube and collar by just pull out the braket;
5, Optoelectronics detect film position on collar to correct film excursion;
6, Electrical photo sensor inducting color code to contol bag length;
7, Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting;
8, Independent temperature adjustment;
9, Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine;
10,The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt.
Weighing Machine:
1, Servo motor control material filling;
2, Can be detached for easy clean;
3, Simple and compact in design;
4, All stainless steel product contact parts. Non-contact parts are stainless steel and aluminum.
Working Process:
Automatically supplying materials 鈫抴eighing 鈫抌ag making 鈫抐illing 鈫抮eshaping 鈫抳acuuming 鈫抯ealing & cutting 鈫抍onveying
Technical Specifications:
| MODEL | ZR-500 | |
| Bag Type | vacuum & reseal brick bag | |
| Maximum Capacity | up to 2kg | |
| Minimum Capacity | depend on product characteristics but normal 100g | |
| Speed | 8-20bags/min (depend on products characteristics) | |
| Hopper Capacity | 50 Litres | |
| Weighing Accuracy | 卤 0.2% depend on products characteristics | |
| Bag Length | 50 - 340mm | |
| Bag Width | 80 - 260mm | |
| Reel Film Width | 鈮 540mm | |
| Film Thickness | 0.04 - 0.12mm | |
| Reel Outer Dia. | 400mm | |
| Reel Inner Dia. | 75mm | |
| Voltage | AC220V/50Hz 1 phase or customer specification | |
| Machine | VFS-260 | 3kw, 800kg, 1650*1140*1650mm |
| VFS-2000 | 1.2kw, 250kg, 1000*950*2200mm | |
| VFS-1000 | 5.5kw, 600kg, 3125*660*1050mm | |
| Compressed Air Requirement | 0.6MPa 0.36M3/min | |
