Applications:
The packaging machine can be equipped with different weight and filling system for various granule and powder like peanuts, candies, cookies, potato chips, rice, sugar, beans, dried fruit, pet food, ground coffee, milk, detergent powder, ketchup, spices etc.
Working Process:
Automatically supplying materials 鈫抴eighing 鈫抌ag making 鈫抐illing 鈫抮eshaping 鈫抳acuuming 鈫抯ealing & cutting 鈫抍onveying
Features:

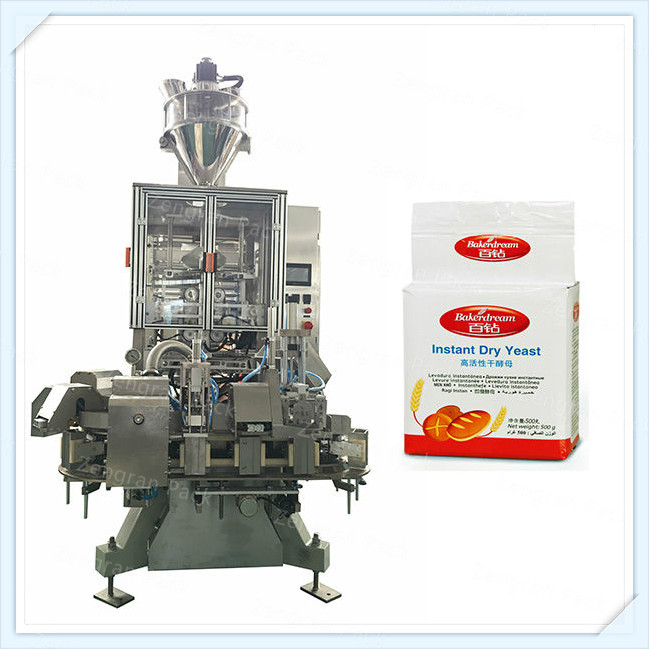

1- The unit of machine including: Z type elevator, ZT2000 series weighing machine, ZVF5000
Vertical packaging machine, ZT2000 vacuum machine, and product conveyor and so on.
2- High speed for packing six side bags or cubic bags Staley
3- great sealing status in good looking.
4- The unit of machine realizes automatic material conveyor, filling, packaging, reshaping, vacuuming, sealing cutting, product conveying, and dust collecting by using the PLC and touch screen.
Powder filling machine
Application:
Suitable for food, medicine, biology, chemical industry and so on, Such as dry powder,coffee powder, veterinary drugs, powder granular additives, sugar, glucose, monosodium glutamate, solid drinks, solid medicine, carbon powder, powder, pesticides, dyes, flavors, etc.
Features:
1) The whole machine is mainly made of stainless steel 304.
2) Hanging type hopper, easy to remove and wash without tools.
3) Servo motor control, optoelectronic switch control, packaging containers unlimited (bags, cans, bottles can be).
4) Can be equipped with feeding machine automatically control material level, more convenient to use, at the same time reduce labor costs, improve production efficiency.
Technical Specifications:
| Bag type | brick Six side bag(cubic bag) |
| Speed | 16 to 24 bags/min |
| Bag Length | 60 to 120mm (2.3 to 4.6in) |
| Bag Width | 40 to 60mm (1.5 to 2.3in) |
| Reel Film Width | 鈮520mm (20.2in) |
| Film thickness | 0.04-0.12mm (40-120mic.) |
| Reel Outer Dia. | 500mm (19.5in) |
| Reel Inner Dia. | 75mm (2.9in) |
| Voltage | AC380V/50-60Hz, 1phase or Per customer specification |
| Power Consumption | 13KW |
| Compressed Air Requirement | 0.6 MPa0.36 M3min |
| Machine Size | L8800 x W3800 x H4800mm; (in): L343 x W148 x H187 |
| Machine Weight | 2000kg |
| Weighing accuracy | +-0.1%~+-0.5% dependent on products characteristics |
| Measuring weight | 100-1000g |
Product Name:
