Applications:
This machine is widely used to pack any loose,non-cohesive granule products of the food,phaeceutical,and chemical industries,such as soup mix,coffee,instant drink mix,desiccant,monosodium glutamate,sugar,salt,cereal etc.
Features:
1, Touch screen with PLC system, touch screen can be set up in many languages, and PLC system can store a large number of data for machine performance.
2, Servo motor for controlling, which can make the whole machine running more steady.
3, Machine line can be set up from 2-12 lines, the capacity of each line is 50 bags/min.
4, Machine house is 304 stainless steel which meets to GMP standard by pharmacy.
5, This machine is easy operated and perfect structured which is the first choice of higher production efficiency, reducing labor intensity and higher packaging level.
6, With safe plastic box on rotating blade to avoid hurting operator's hands
7, Need to change new temperature controller,blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)
8, With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.
Technical Specifications:

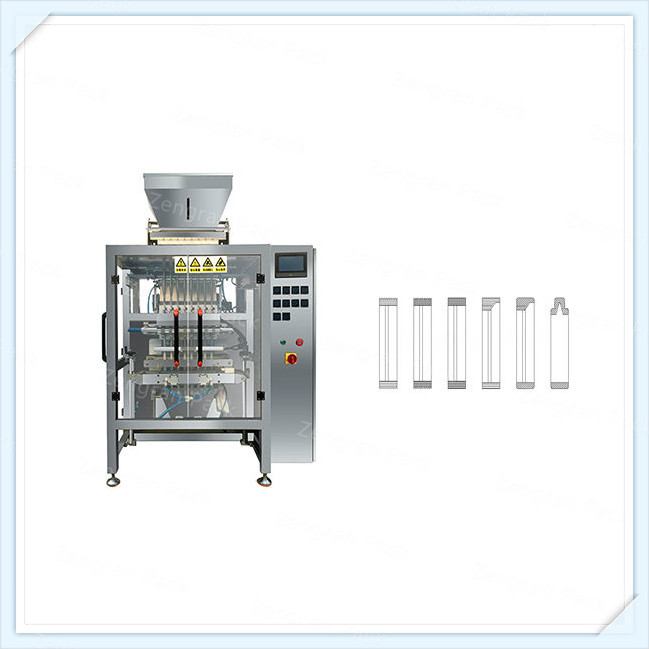

| Name | 8 lanes granule Packing Machine |
| Model | ZR-480KB |
| Bag style | Stick seal sachets |
| Bag size | Length: 50mm Width: 40mm Single lane film width 80mm |
| Packaging film | The maximum width: 480/880mm |
| Capacity | 40-55cycles/min/line Total packing speed: 300-450sahcets/min |
| Control style | adopt advanced PLC controlling system and convenient touch screen |
| Pneumatic request | 0.6Mpa |
| Voltage | A C380v 3 phases 50Hz |
| Power | 3.5Kw |
| Weight | G.W 850kg |
| Dimension | L1500x W1400xH2400 mm |
