Applications:
It is suitable for packing product such as loose leaf tea, herbal tea, health care tea, TieGuanYin, LongJing, DaMaoFeng, DaHongPao, Rose tea,Ginseng,etc.
Introduction:

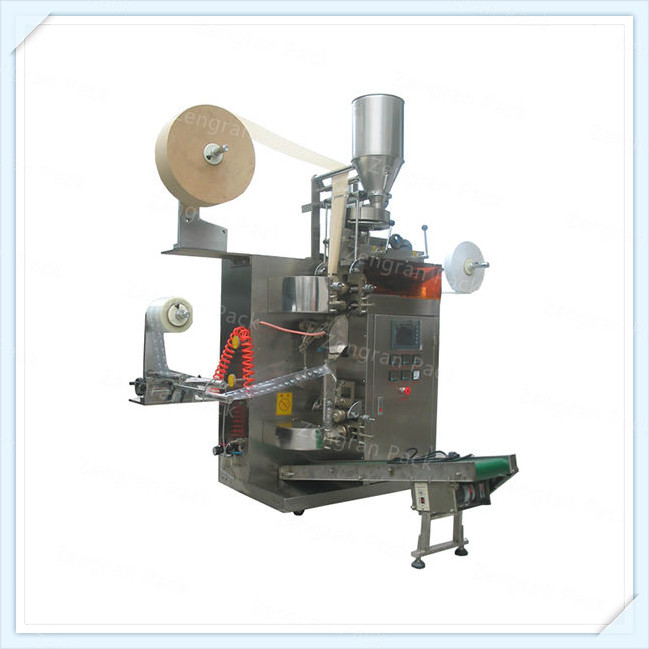

1.ZR-16 is Full Automatic Tea bag Packing Machine,the machine finish bag making,measuring, filling, sealing,coding and counting full automatically.
2.The packing material is heat seal-able rolled packing film,the cost is lower,
3.Measure with volume cups, with 1% error, the bag former and vertical/horizontal sealing finish bag forming.
4.Suitable for tea, coffee, traditional Chinese medicine, such as filter items
5.3000bags/hour,good labor and power saver.
Features:
1, An outer seal paper by stepper motor control, bag length stable, accurate positioning;
2, using the PID controller to adjust the temperature, temperature control more accurate;
3, the operation of the machine is controlled by PLC, HMI display, easy to operate;
4, all accessible part of SUS304 stainless steel material, a reliable guarantee health products;
5, part of the work cylinder using imported parts, ensure the accuracy and stability of its work.
6, the machine can complete additional device flat cut, date printing, easy to tear, and other functions.
Packing materials:
Pet/Pe, Pet/Al/Pe, tea leaf filter paper.
Technical Specifications:
| Type: | ZR-16 | Packing speed: | 30-50bags/min |
| Measuring range: | 1-5ml | Tag size thread length: | 28*24mm 155mm |
| Inner bag: | L:50-75mm W:50-75mm | Outer bag: | L:80-120mm W:75-95mm |
| Sealing type: | 3 sides sealing | Cutting type: | flat cut |
| Power: | 3700W | Net weight: | 500KG |
| Voltage: | 220V/380V-50HZ/60HZ | Overall size: | L1050*W700*H1300mm |
